Ecojay SMartZone Series - SmartLink Makes 8-Zones Easy; Connecting Multiple SmartZones

I88
HI TEMP
LO TEMP
SUPPLY
PURGEDELAY ECO
ecojay
SmartZone
FRESH AIR
I88
HI TEMP
LO TEMP
SUPPLY
PURGEDELAY ECO
ecojay
SmartZone
FRESH AIR
1
1
72⁰
2
2
78⁰
3
3
67⁰
4
4
84⁰
ZONE
1 to 4
THERMO
-STATS
8
8
75⁰
5
5
FAN
6
6
73⁰
7
7
OFF

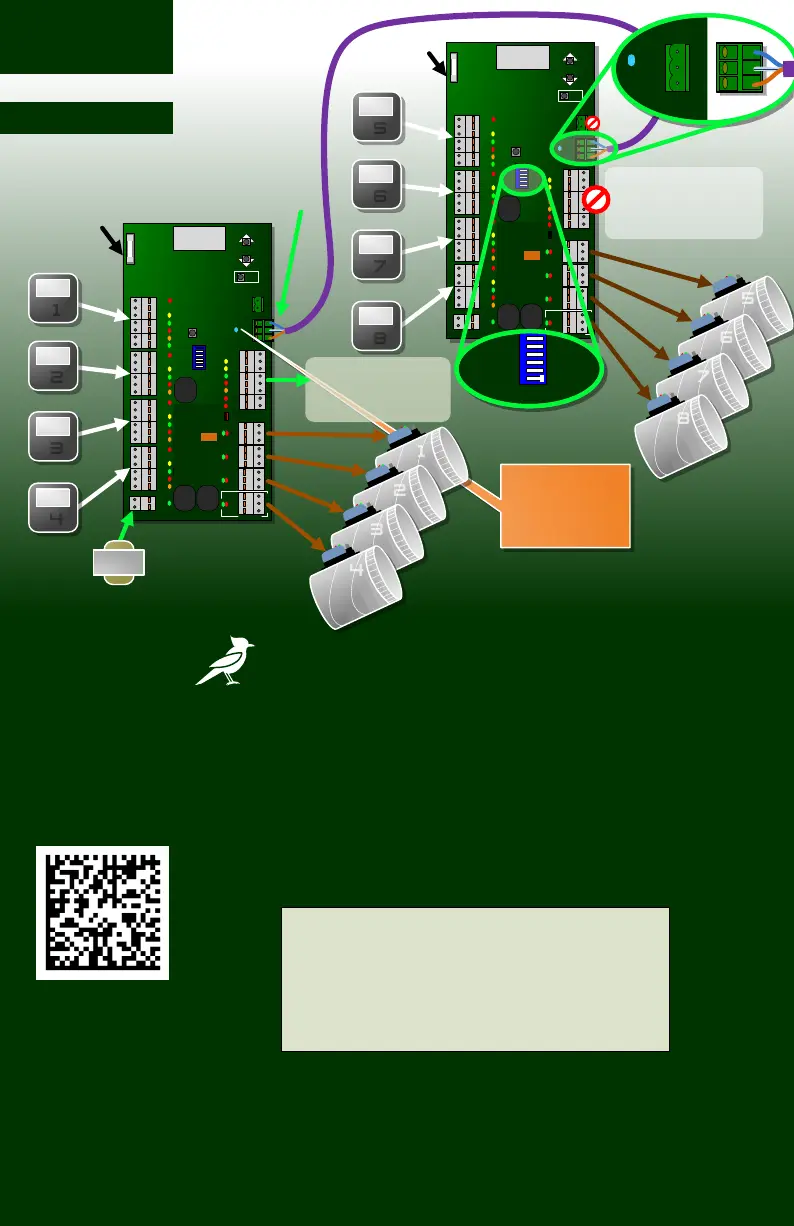

For systems with
5 to 8-Zones:
Connect two SmartZone-4X Controllers
together using only a CAT 5 cable.
(Wiring detail shown to right - same for
primary and secondary controller)
If two separate transformers are
used for a SmartLINK application
(using two 4X Boards to create 8
zones), the primary and secondary
polarity MUST be the SAME on both.
