Ecolab Chameleon SP Series - Operating Diagrams SP

5

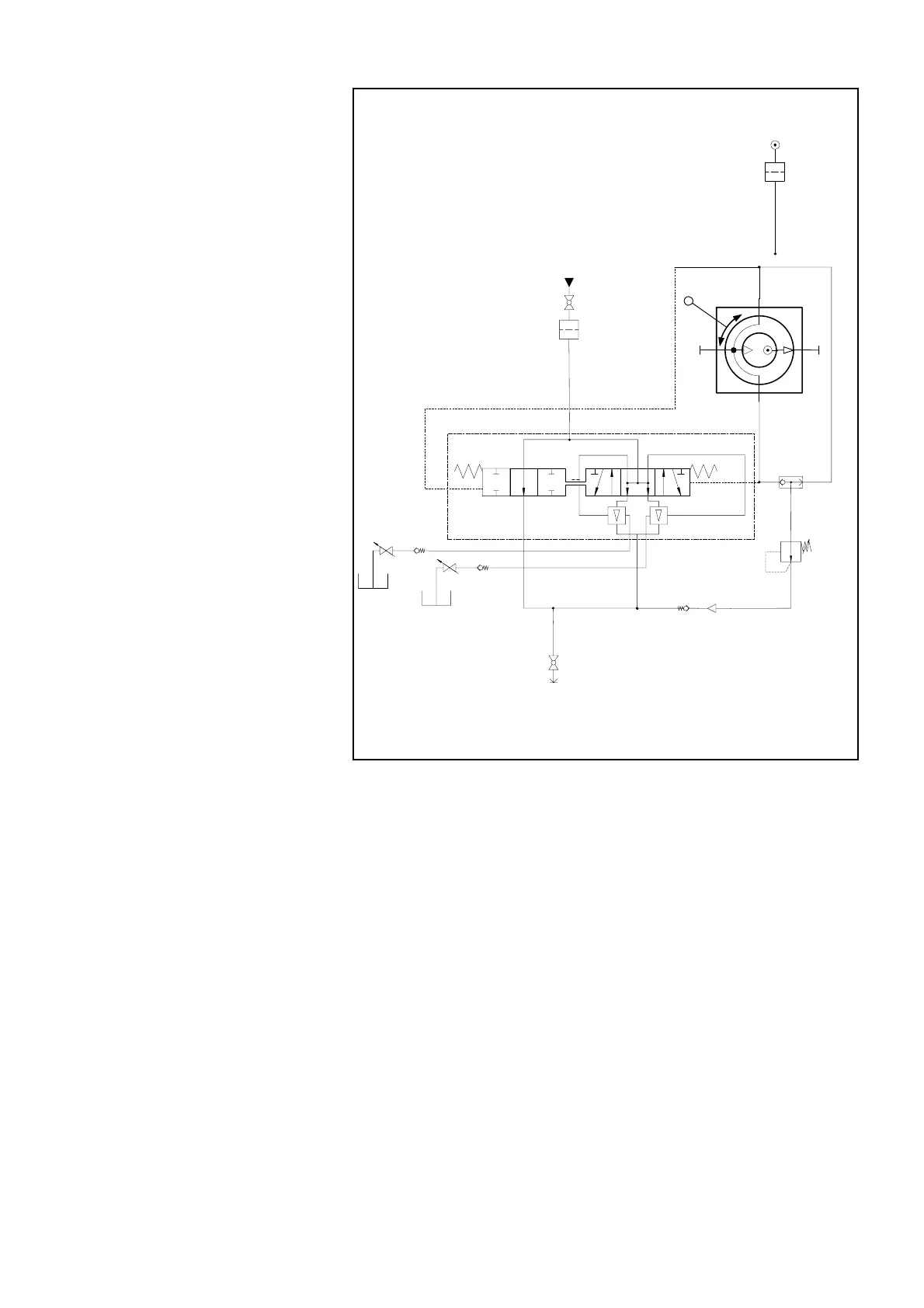

1.2 Operating Diagrams
iht. ISO14617
Satellite SP
B. Ball valve.
F. Filter.
C. Check valve.
CR. Detergent regulator.
EJ. Ejector.
HV. Hydraulic valve.
HC. Hose connection.
OV. Operator valve.
OR. OR element.
PR. Pressure regulator.
A. Air supply.
D. Outlet.
E. Inlet, topax detergent.
W. Water inlet.
0627148






&
&
&5
(
29
25
35
(- (-
+&
%
'
)
%
:
&
&5
(
+9
$
)
&RQQHFWLRQZLWK
29DWSRUWQU
