Ecolab DS1-RMT - Page 16

16
0 1 2 3 4 5 6 7 8 9
A
B
C
D
E F
A
B
C
D
E F
Satellite unit for Airspexx DS1 and DS2 Airspexx
Revision
C
Init.
sab
2
DCC
&EFS
Next page
No of pages
2
Page
Dwg. Number
110003013
Dato
13-02-2017
Project responsible
SAN
Display
-K4
-Q1
Lance
-K3
-W1
XJ1 XJ2 XJ4 XJ5 XJ8A XJ10 XJ11

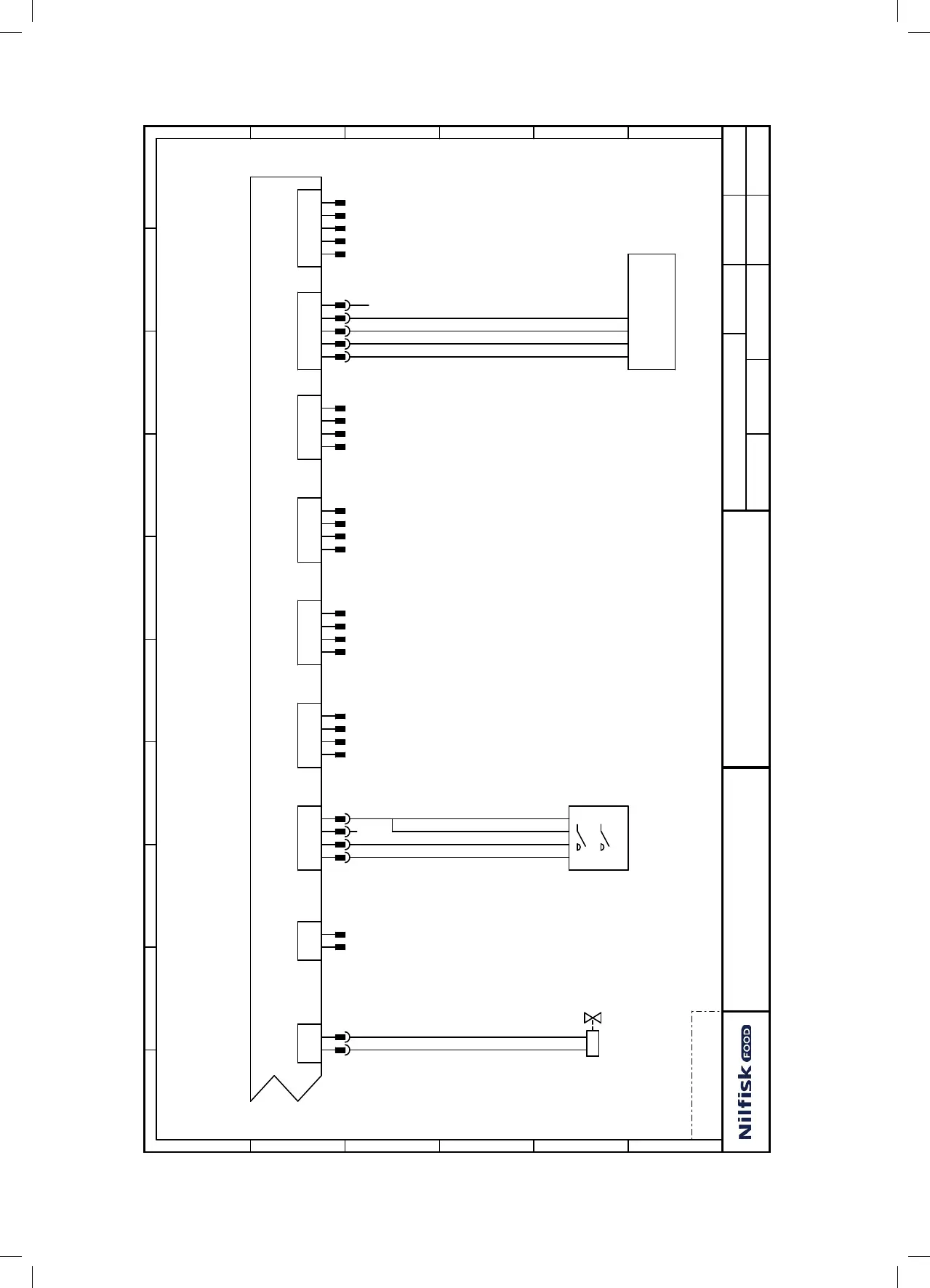

Control board, Part 2
XJ6 XJ8B
-K2
