3 Setup
3.1 EMP KKS E60 and EMP II E60
1
2
3
4
5
6
7
8
9
10
11
13
A
2
3
4 6
5
A
1
A
13
7
8
9
10
4
2
6
5
12
3
11
12
1
2
5 3
13
13

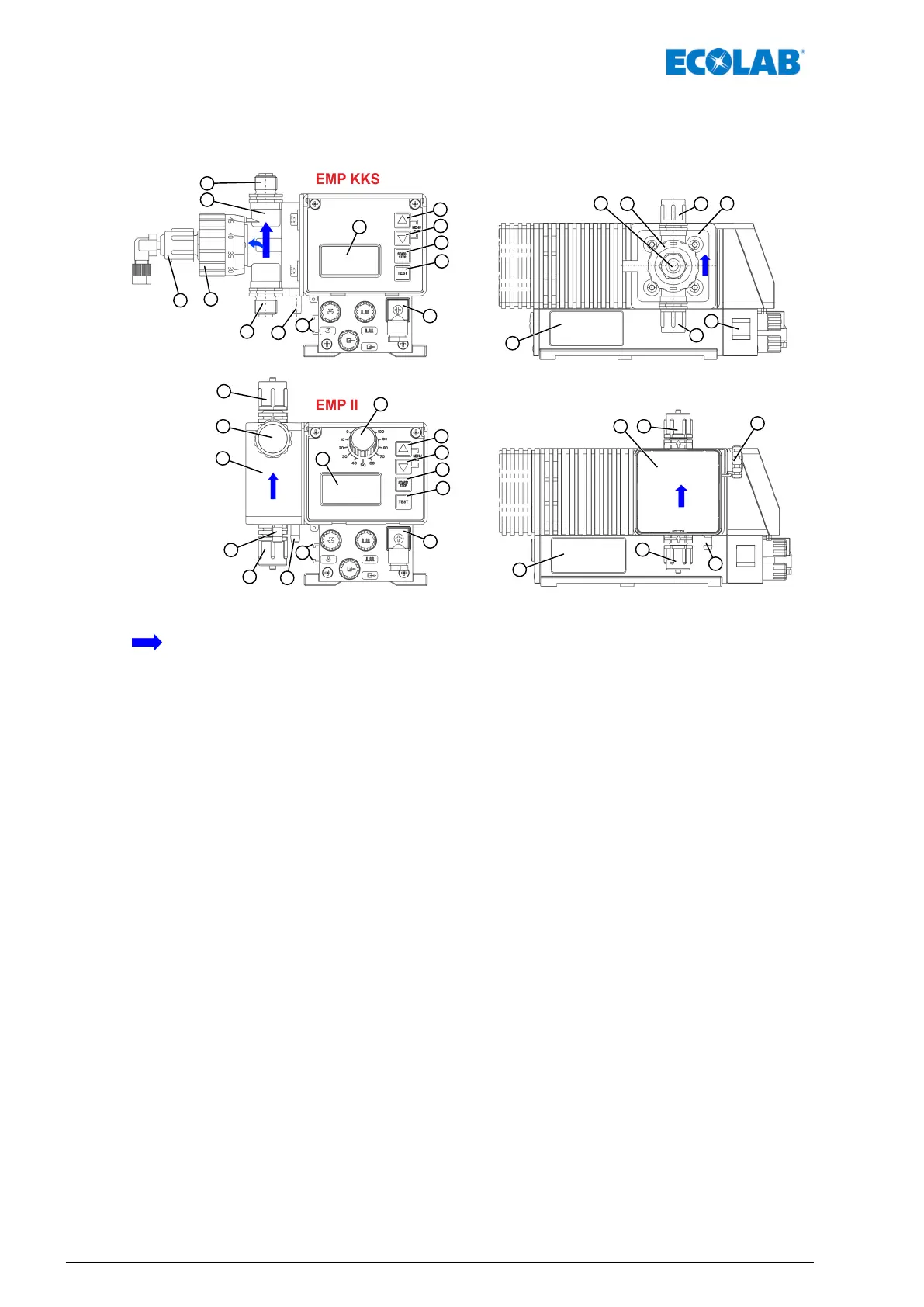

Fig. 2: Structure EMP KKS E60 and EMP II E60
Flow direction of the metering medium
1 Diaphragm breakage sequence
2 Suction valve
3 Pressure valve
4 Control knob for setting the stroke length
5 Pump head
6 Return flow connection (return to the container, only
EMP KKS!)
7 Menu/Exit, up arrow key
8 Menu/Exit, down arrow key
9 Start/Stop key (Enter function)
10 Test key
11 Graphical display
12 Venting screw (EMP II only)
13 Mains connection
A Rail for connecting the dongle box
Setup
8MAN033535 Rev. 06-04.2020
