4.2.2 Control inputs and outputs EMP KKS / II / III

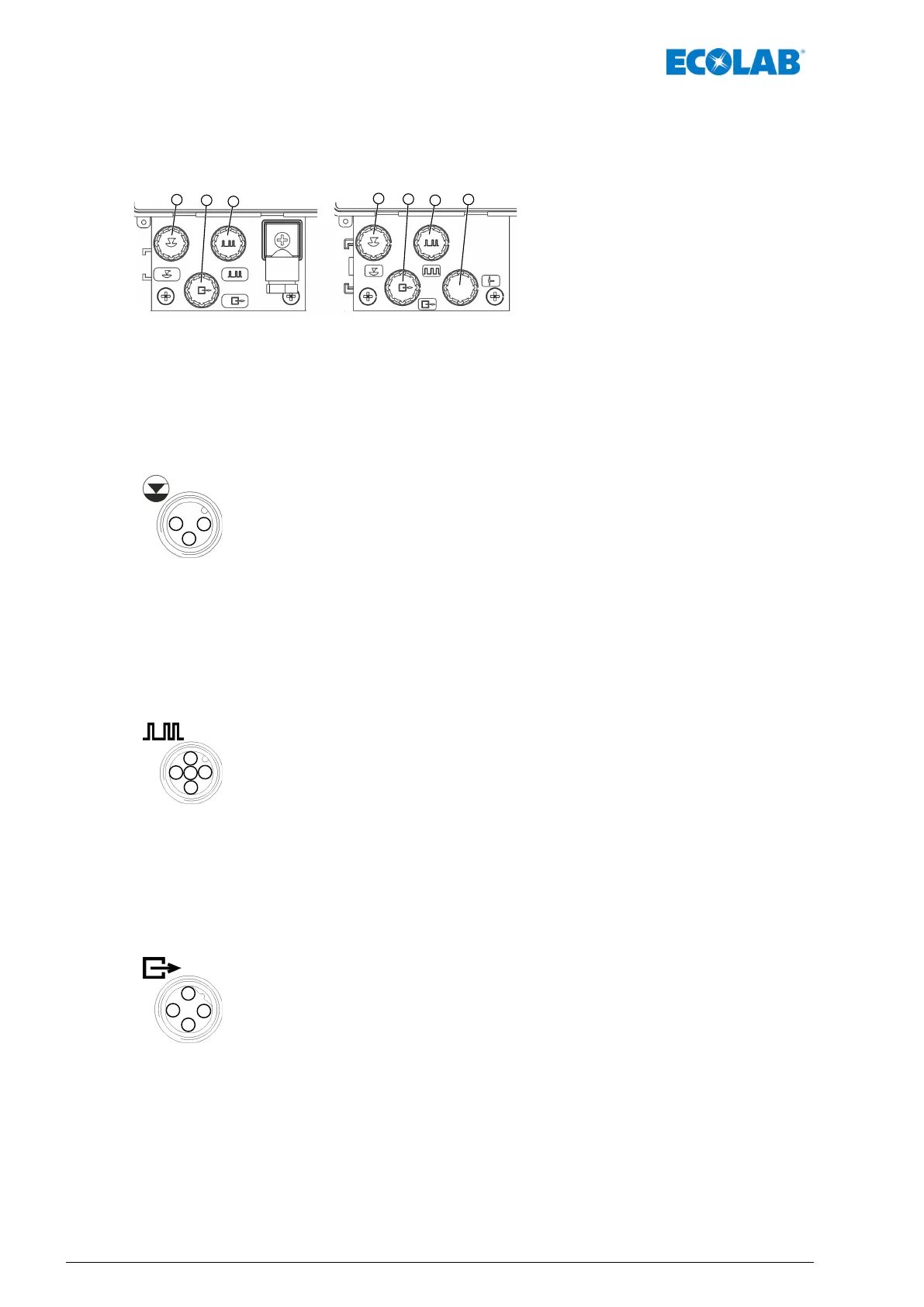

4.2.2.1 EMP KKS / II / III Overview
EMP KKS & EMP II EMP III
I
III
II
I
III
II
IV
I
Input for low-level advance warning
and empty report
II
Input for pulse- / standard signal and
metering lock, batch pulse, metering
monitoring
III
Output for low-level advance warning,
empty report, alarm, stroke signal
IV
Input for diaphragm breakage
monitoring
4.2.2.2 EMP KKS / II / III Connector assignments of Slot I (3-terminal)
Input for low-level advance warning and empty report
1
3
4
Pin
Conductor
coloring
Assignment
1 brown Input low-level warning
3 blue Input empty report
4 black GND (┴)
4.2.2.3 EMP KKS / II / III Connector assignment of slot II (5-terminal)
Input for pulse signal, standard signal, metering lock, batch and metering
monitoring
1
2
3
4
5
Pin
Conductor
coloring
Assignment
1 brown Output 5 V, DC (loadable with max. 50 mA)
2 white Pulse input (also as configurable batch / metering monitoring)
3 blue Metering lock (also as configurable batch / metering monitoring)
4 black GND (┴)
5 grey Input standard signal 0/4...20 mA
4.2.2.4 EMP KKS / II / III Connector assignments of slot III (4-terminal)
Output for low-level warning, empty report, alarm, stroke signal
1
2
3
4
Pin
Conductor
coloring
Assignment
1 brown Output low-level warning, empty report and fault (+)
2 white Output low-level warning, empty report and fault (-)
3 blue Output stroke signal (+)
4 black Output stroke signal (-)
Device installation
14MAN033535 Rev. 06-04.2020
