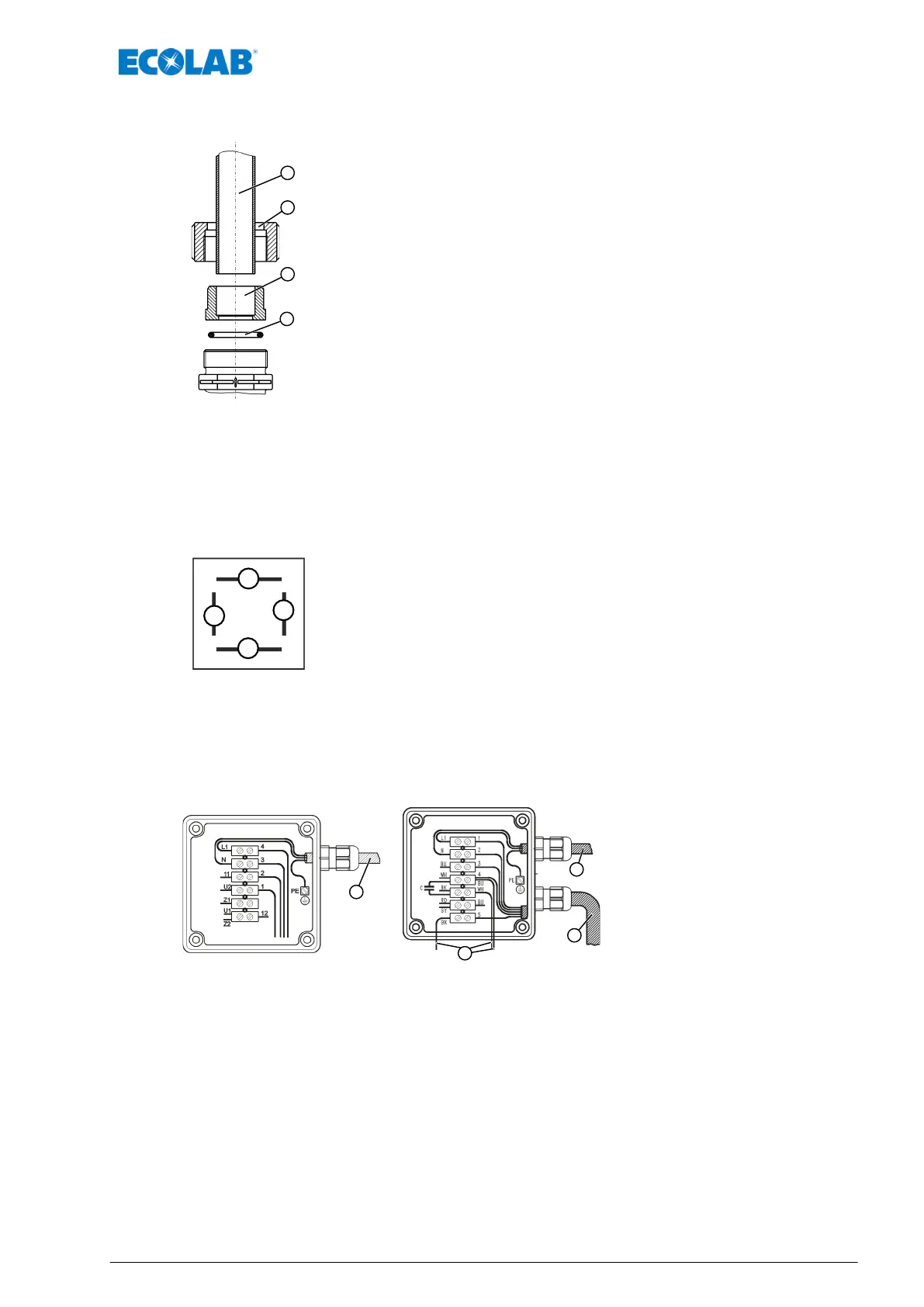

Tube connection
1
2
3
4
1 Conduit
2 Union nut
3 Insert component
4 O-ring
n Trim the tube (pos. 1) to the precise length.
n Push union nut (pos. 2) over tube.
n Weld or glue insert (pos. 3) to the pipe.
n Place O-ring (pos. 4) into groove of suction/pressure valve.
n Tighten up union nut.
4.2 Electrical connections
4.2.1 Power supply
EMP KKS & EMP II
L1
PE
N
*
L1 Mains / external conductor
PE Protective earth wire
N Neutral wire
* not assigned
Assembly see Fig. 2, pos. 13.
EMP III & EMP IV
EMP III EMP IV
1
1
2
3
1 Powerline
2
Connecting lead to control
PCB (in the pump housing)
3
Connecting lead to the start-up
electronic system
(in terminal box lid)
EMP III assembly see Fig. 3, Pos. 15.
EMP IV assembly see Fig. 3, Pos. 15
Device installation
13 MAN033535 Rev. 06-04.2020
