7.2.2 Type: 00800 - 01200

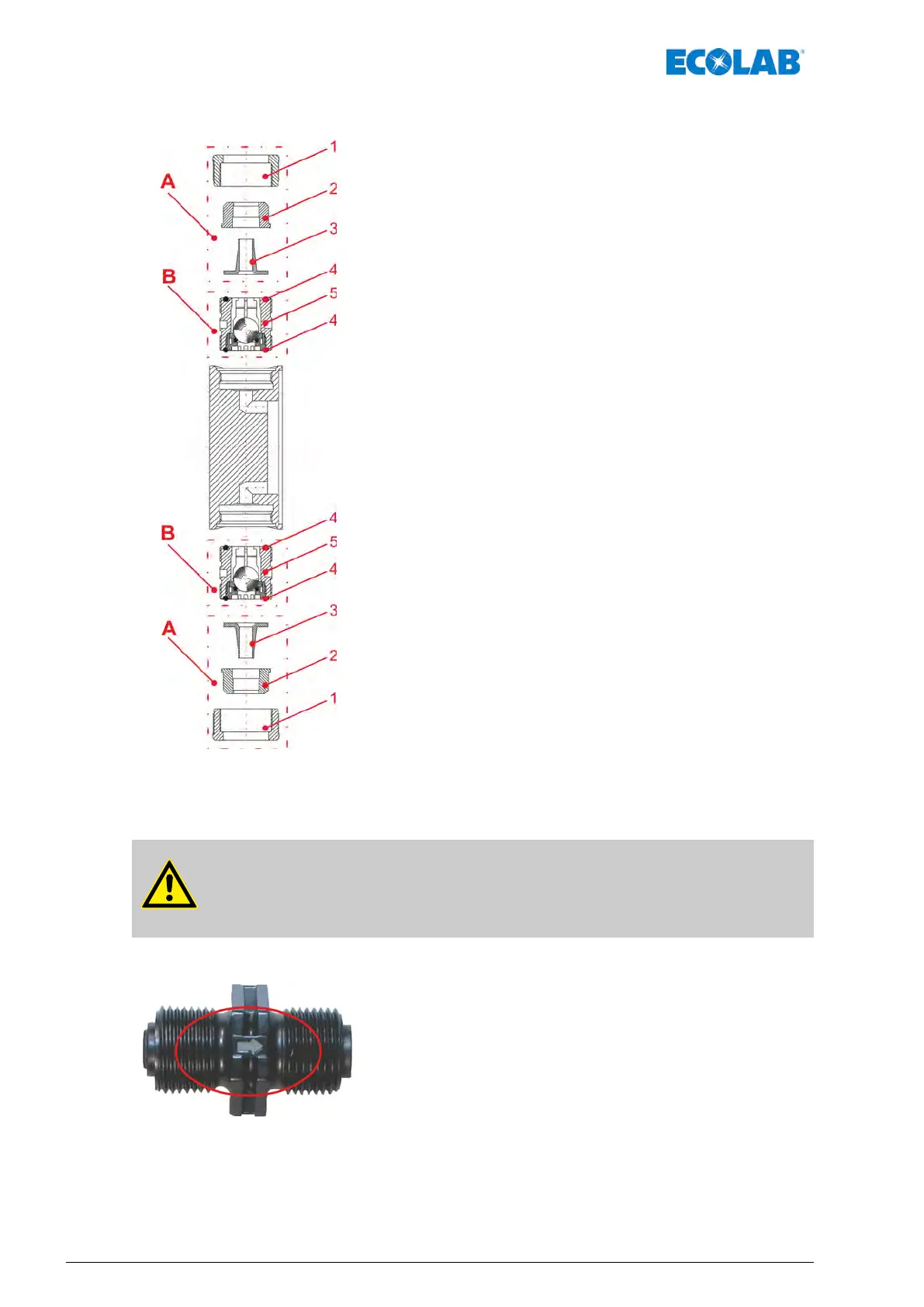

A CONNECTION SET
1 Union nut
2 Clamping piece
3 T
apered part
B SUCTION-/ PRESSURE VALVE
4 O-Ring, Ø 28 x 3,5
5 Suction-/Pressure valve
7.2.3 Install dosing valves in correct position
WARNING!
When inserting it, always ensure that the valves are inserted according to the
flow direction!
On the suction valves and pressure valves, the flow direction is
marked with an engraved arrow
.
Maintenance
44417102233 Rev. 3-03.2019
