Ecolab XP Foamer - XP Foamer Operating Diagrams

7
110003126
E1
F
E2
F
W
CP FST C
C
C
C
D
A
EJ
RV CO
EJ
HV
HC
English (EN)

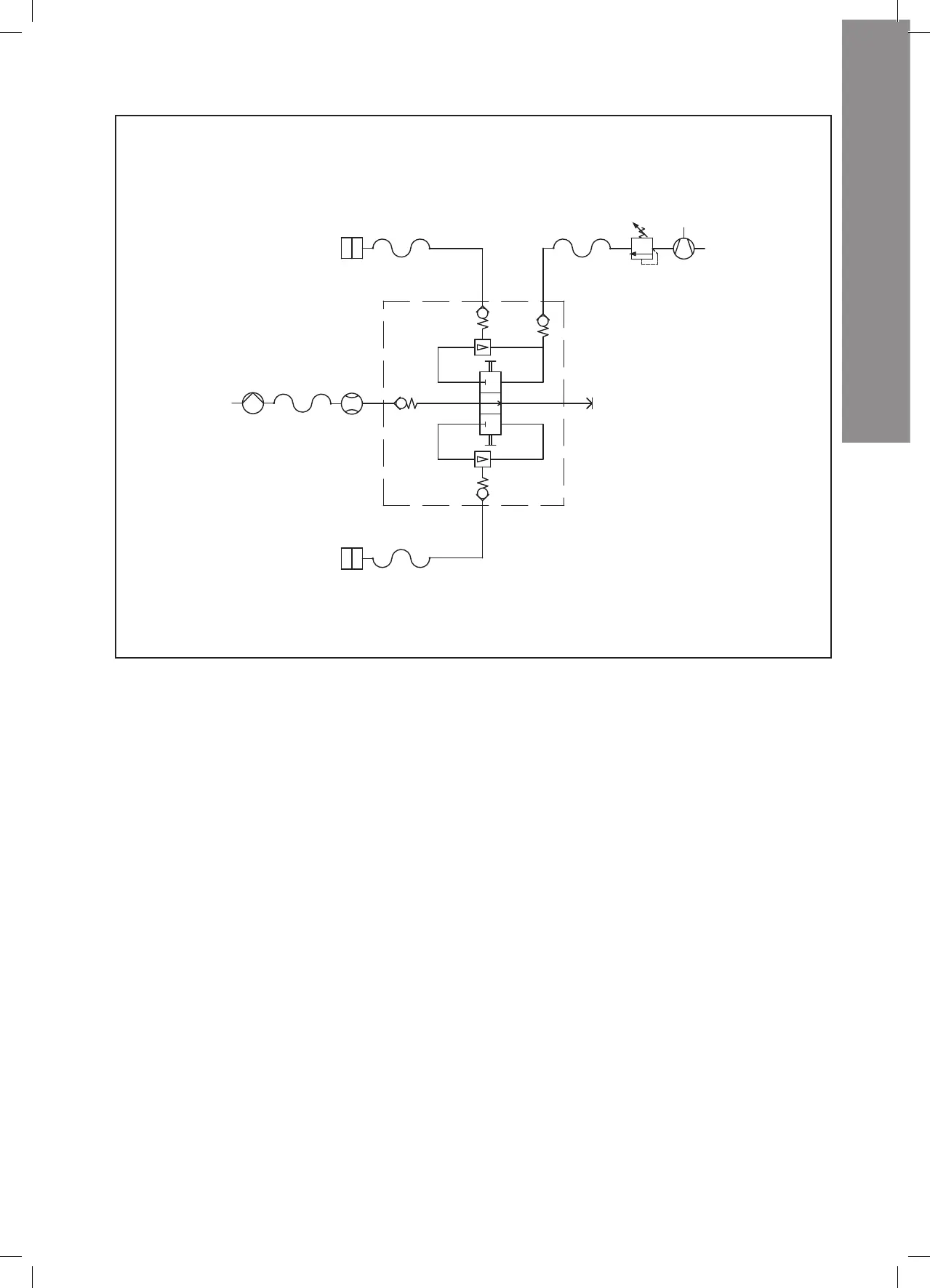

3.2. Operating Diagrams
according to ISO14617
F. Filter.
FST. Flow-switch and -trigger.
C. Check valve.
CP. Centrifugal pump.
EJ. Ejector.
HV. Hydraulic valve.
HC. Hose connection.
A. Air supply.
D. Outlet.
E. Inlet, detergent.
W. Water inlet.
CO. Compressor
RV. Regulating valve
