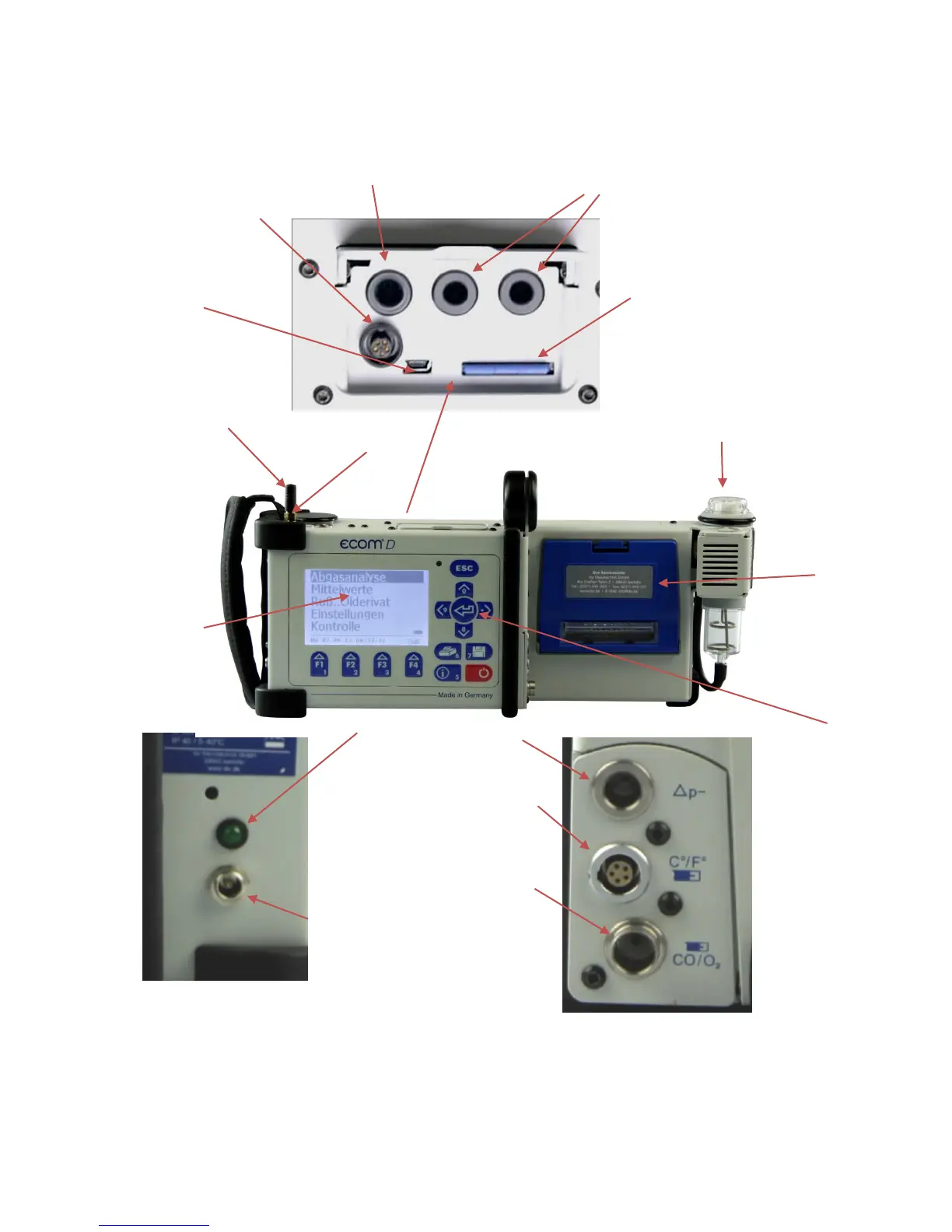

Instrument Design
Air temperature
Connection
Slot for multi-media
card
Connections for
the pressure sensor
Gas temperature
Connection
USB connection
Condensation trap
(with Peltier cooler)
with fine dust filter
(Option)
Sample line
Connection
Draft
Connection
Pressure
Connection
AUX connection
Printer
(Option)
Graphic
display
Charger connection
Charging LED
Antenna for Bluetooth
or WiFi
(Option)
Arrow Keys
