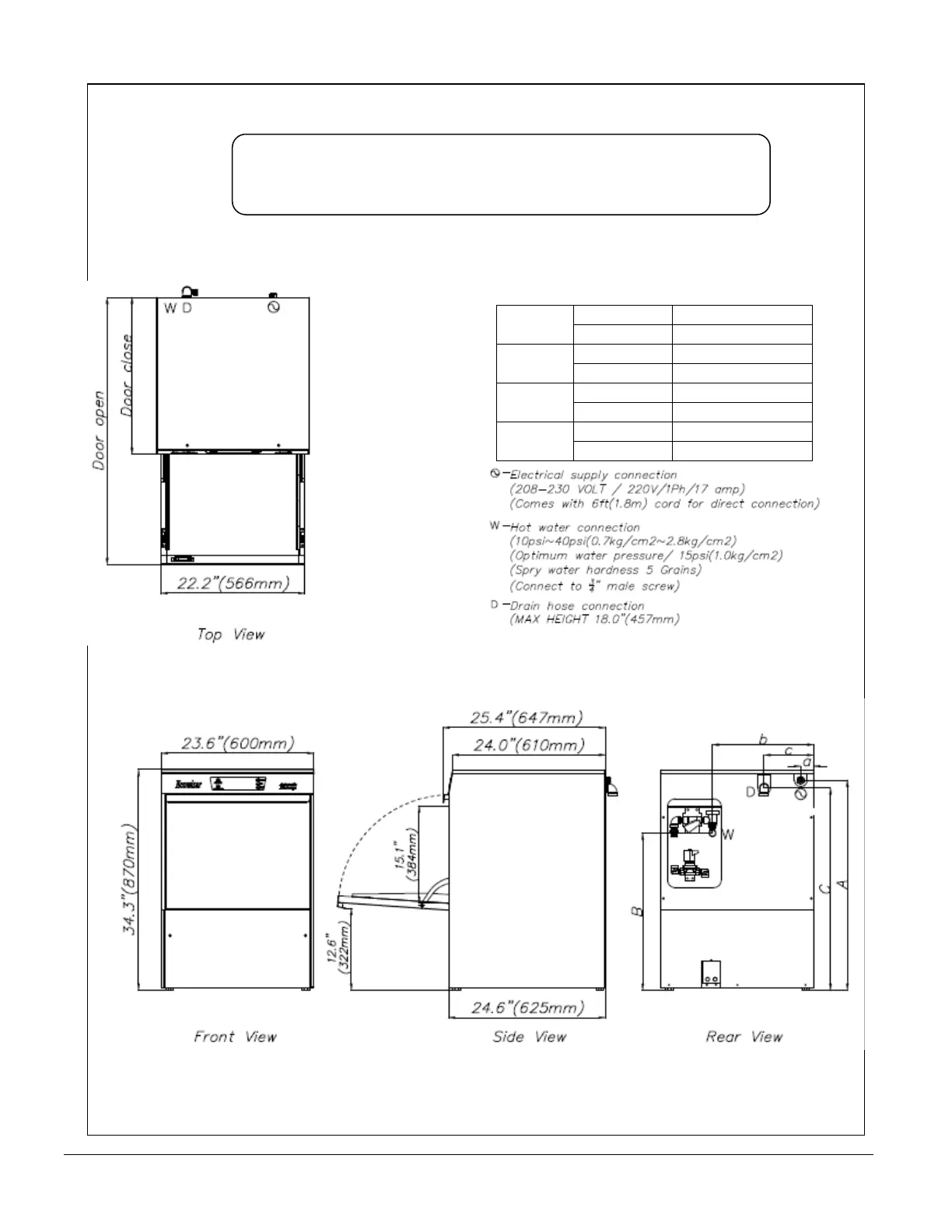

Ecomiser SU-01 - Page 2

Legend
Height
Door open
41.5" (1,053 mm)
Door close
25.4" (647 mm)
Electric
A
32.5" (827 mm)
a
2.0" (51 mm)
Water
B
24.3" (618 mm)
b
15.6" (397 mm)
Drain
C
32.5" (827 mm)
c
7.7" (195 mm)
Ecomiser SU-01
INSTALLATION REFERENCE
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 2 of 23
