Ecomiser SU-01 - Page 3

Legend
Height
Door open
41.5" (1,053 mm)
Door close
25.4" (647 mm)
Electric
A
32.5" (827 mm)
a
5.5" (140 mm)
Water
B
14.7" (374 mm)
b
2.7" (70 mm)
Drain
C
32.7" (832 mm)
c
4.6" (117 mm)
Ecomiser SU-02

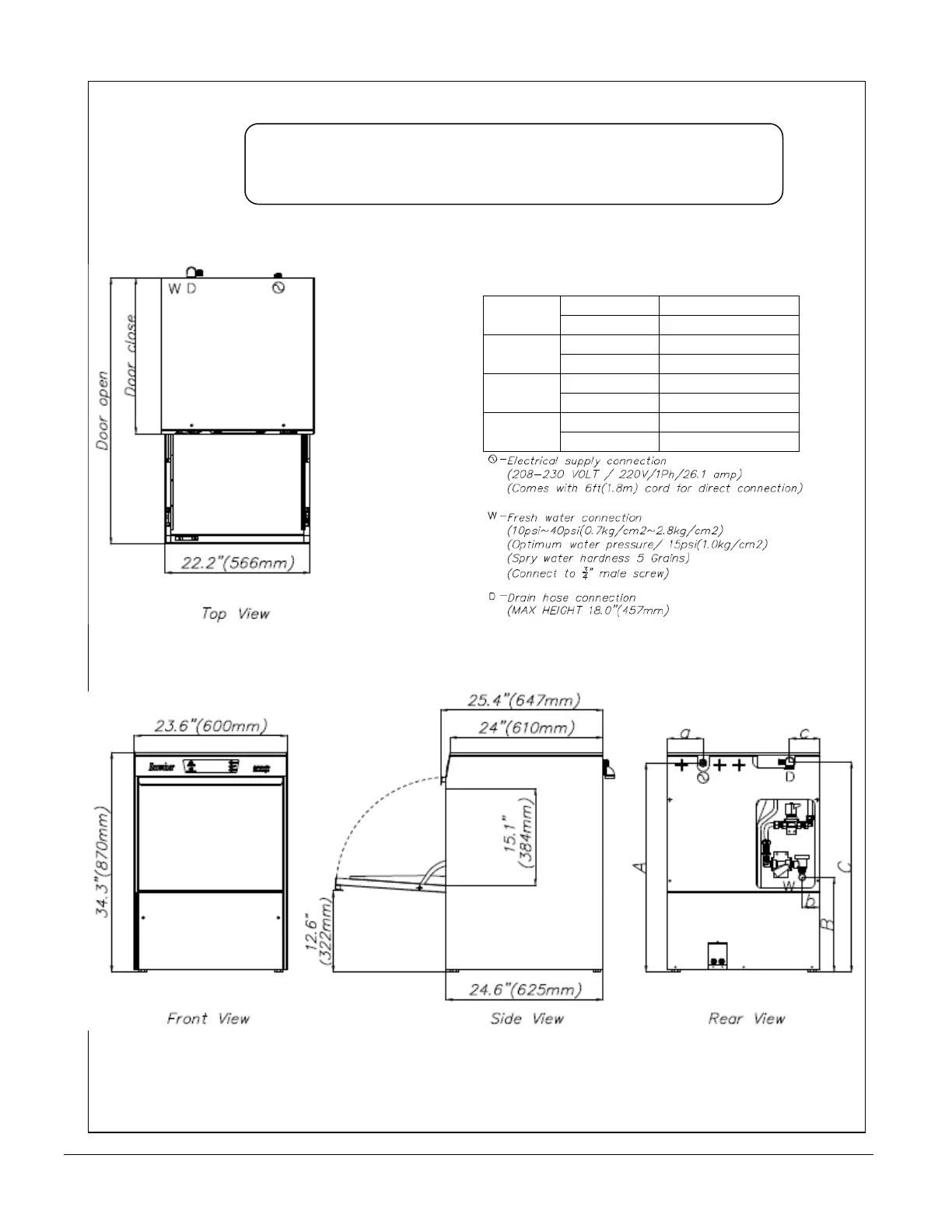

INSTALLATION REFERENCE
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 3 of 23
