AR2…SE.. Instructions 3 Form 120127
2 TECHNICAL DATA
Body and cover : die-cast aluminium
Output torque : 4 ÷ 20 Nm
Maintaining torque : 4 ÷ 20 Nm
Stroking time : 7,5 ÷ 60 seconds for 90° at 50 Hz
Output shaft : Ø 12 mm with 9,5 mm
Installation : in any position
Ambient temperature : -10 ÷ 60 °C
Weight : ~ 2,5 kg
Main supply : 24 Vac / 50-60 Hz
on request with transformer 230Vac or
115Vac / 24 Vac 50 – 60 Hz
Adsorbed power : 7 VA
Input signal : according to model [refer to § 10]
Input signal impedance : according to model [refer to § 10]
Local control station : Auto/Manual and Open/Close/Stop
Rating of el. contacts
limit and auxiliary switches : 0,5 A / 48 Vdc and Vac
Enclosure Rating : IP 54 according to IEC 529
Duty cycle : continuous 100%
Conduit knockouts : 2 x Pg 13,5
3 INSTALLATION
3.1 The AR gear motor must be positioned so that the square shaft [POWER END] is
turned towards the device to be put in motion.
3.2 If no other adjustment of the rotation angle is expressly requested, the AR2...E
gear motor is always supplied from the factory with standard adjustment of
endswitches for a 90° rotation.
3.3 The square shaft on the POWER END side is positioned in the factory as shown in
picture 1.

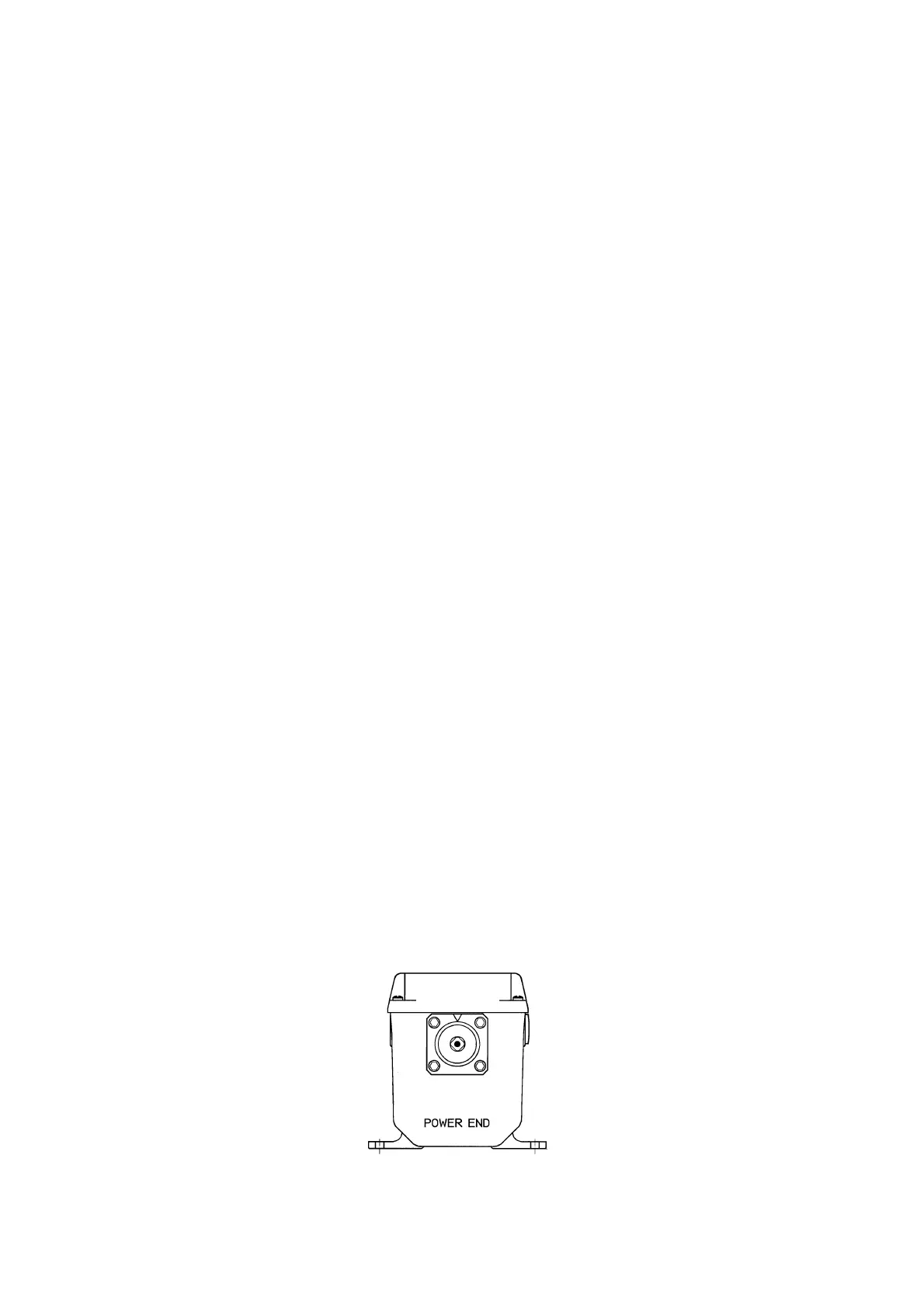

Picture n. 1
