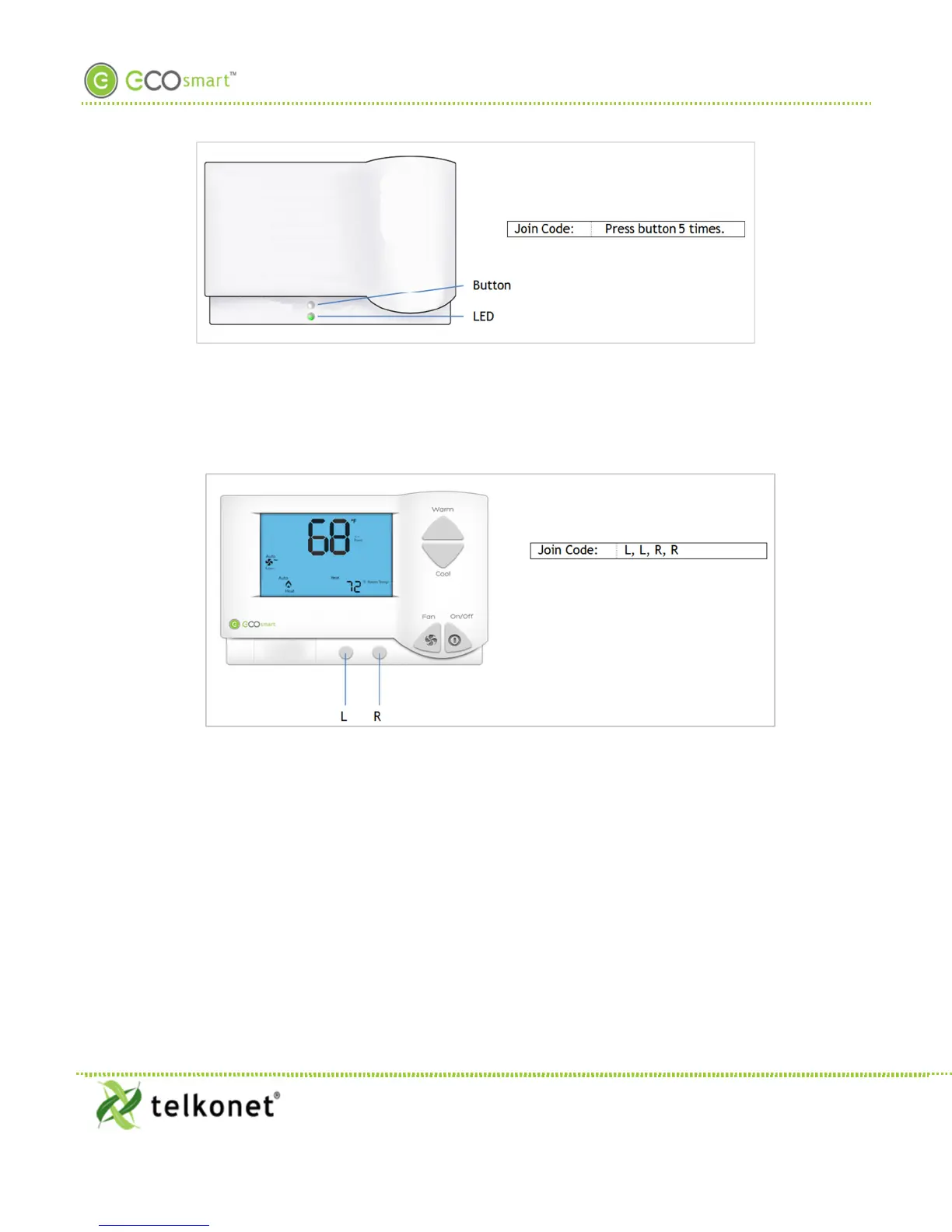

Figure 5: EcoSource and Join Code
9. Verify the LED on the front of the EcoSource blinks a “Red, Red, Green” sequence.
10. Wait 60 seconds for the EcoSource to find the network.
11. Verify that the EcoSource reboots.
12. Verify that the LED on the front of the EcoSource is lit solid green. Continue to Step 18.
13. Use figure 6 to enter the join code on the EcoInsight.
Figure 6: EcoInsight and Join Code
14. Verify the two horizontal bars appear above "Room Temp". This indicates the EcoInsight is scanning for
the EcoConnect.
15. Wait 60 seconds for the EcoInsight to find the network.
16. Verify that the EcoInsight reboots.
17. Verify that the EcoInsight shows zero bars above "Room Temp". This indicates the EcoInsight has
properly joined the EcoConnect. Continue to next step.
