9
 The U-Bolts will accommodate a pole diameter of
1.25-2 inches (pole not included).
1. Install the base on a pole (1.25inch~2inch) as
Figure 3.

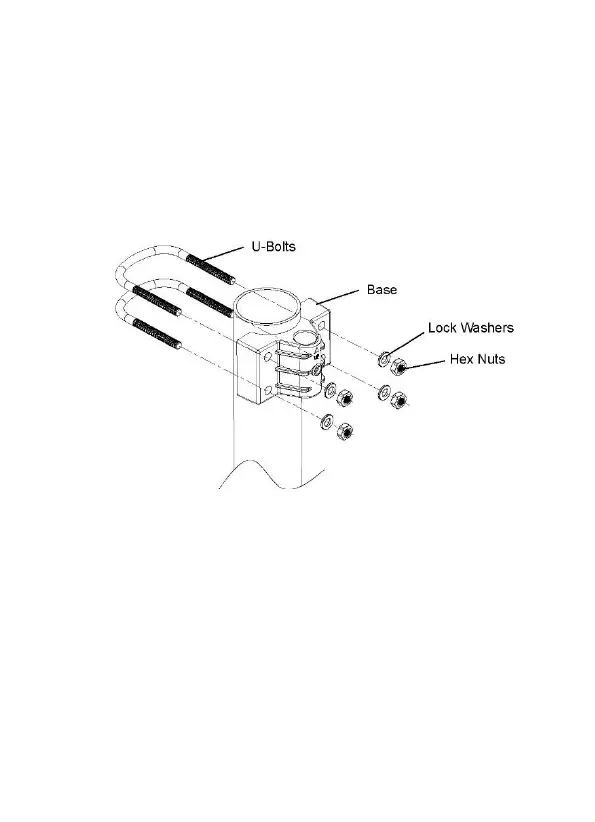

Figure 3: Sensor package mounting diagram 5-1
2. Pass the connector cord through the arm tube as
Figure 4:
