BMW S54 DUAL VANOS REBUILD
®
Return to Vanos Repair Table of Contents
Step 1:
Step 2:
5mm Allen (Hex Bit) Socket, Ratchet

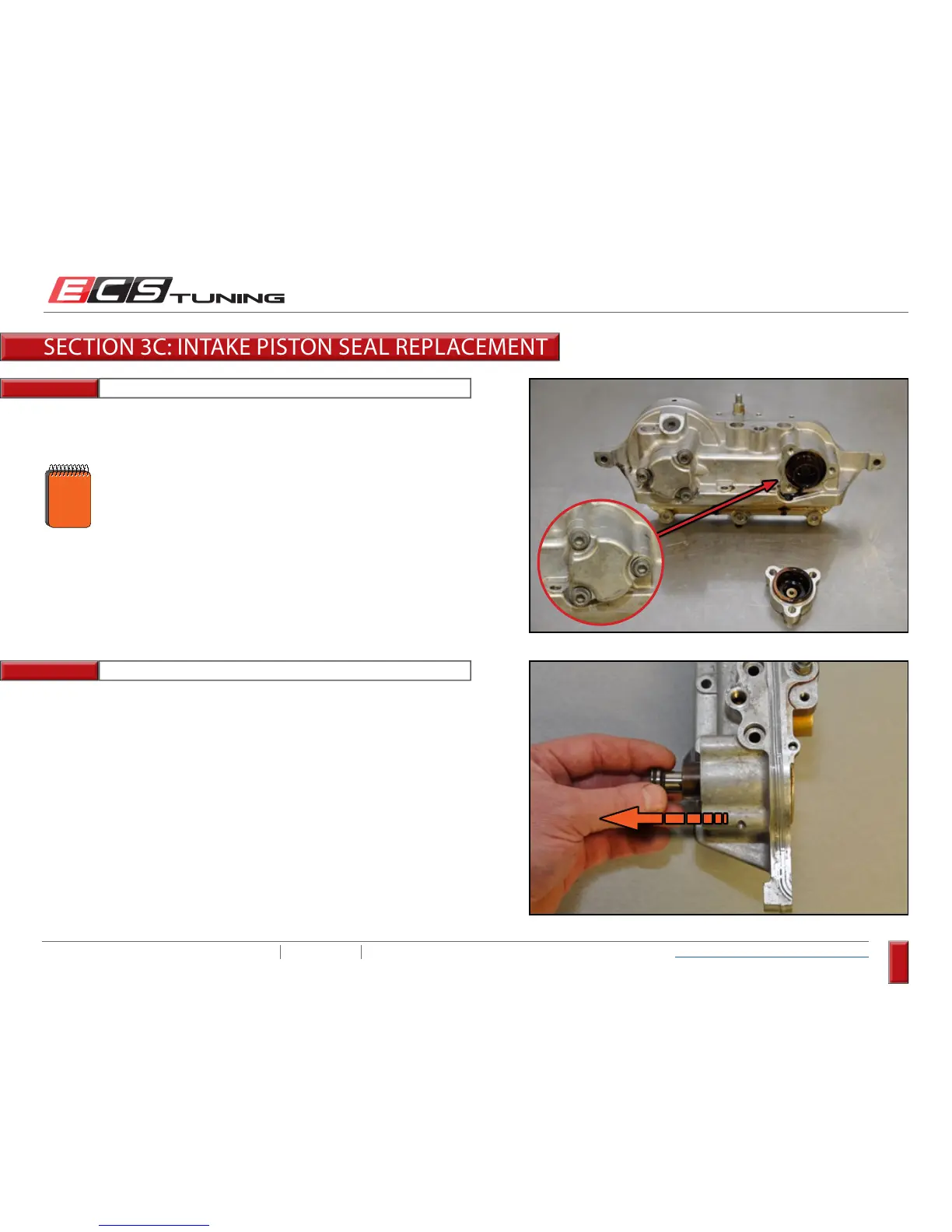

Remove the three bolts and pull off the intake piston cap.
Push/pull the intake piston out of its cylinder towards the direction of the
cap.
SECTION 3C: INTAKE PISTON SEAL REPLACEMENT
These can be difficult to remove due to a stuck
seal. You may have to use a thin scraper/putty
knife or similar tool to help pry the cap loose.
NOTE
