BMW S54 DUAL VANOS REBUILD
®
Return to Vanos Repair Table of Contents
SECTION 1A: VANOS SYSTEM ACCESS
Component removal to get down to the Vanos system is pretty basic, and we’re betting if you’re going to tackle this job you don’t need us to step
you through the easy stuff, but we’ll give you a quick run-down anyhow. The following items will need to be removed:
2. Radiator Fan and Shroud
1. Air Box
3. Cabin Filter Housing
4. Suspension Cross Brace
5. Engine Top Cover, Valve
Cover, and Ignition Coils
1
3
5
2
4

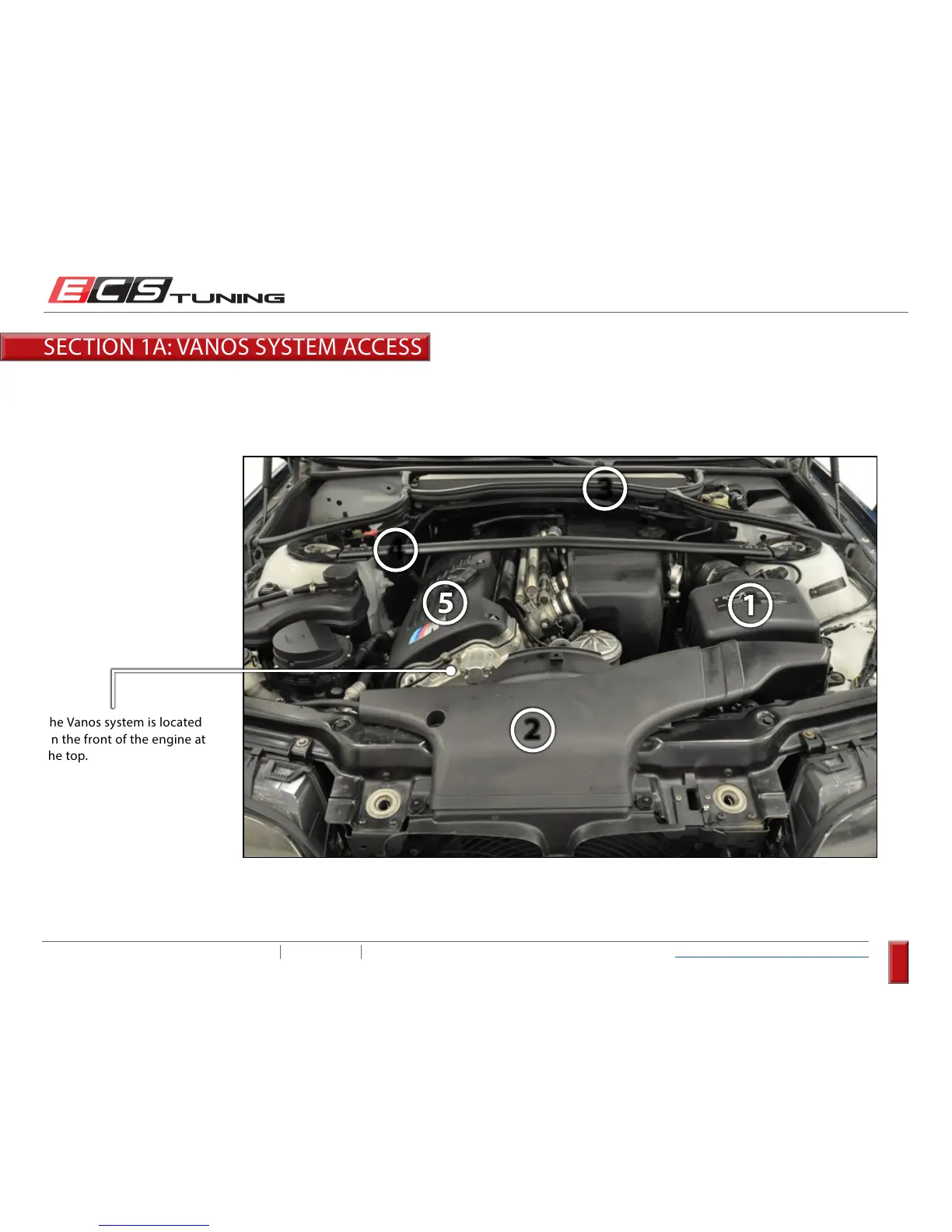

The Vanos system is located
on the front of the engine at
the top.
