BMW S54 DUAL VANOS REBUILD
®
Return to Vanos Repair Table of Contents
Step 3:
Step 4:

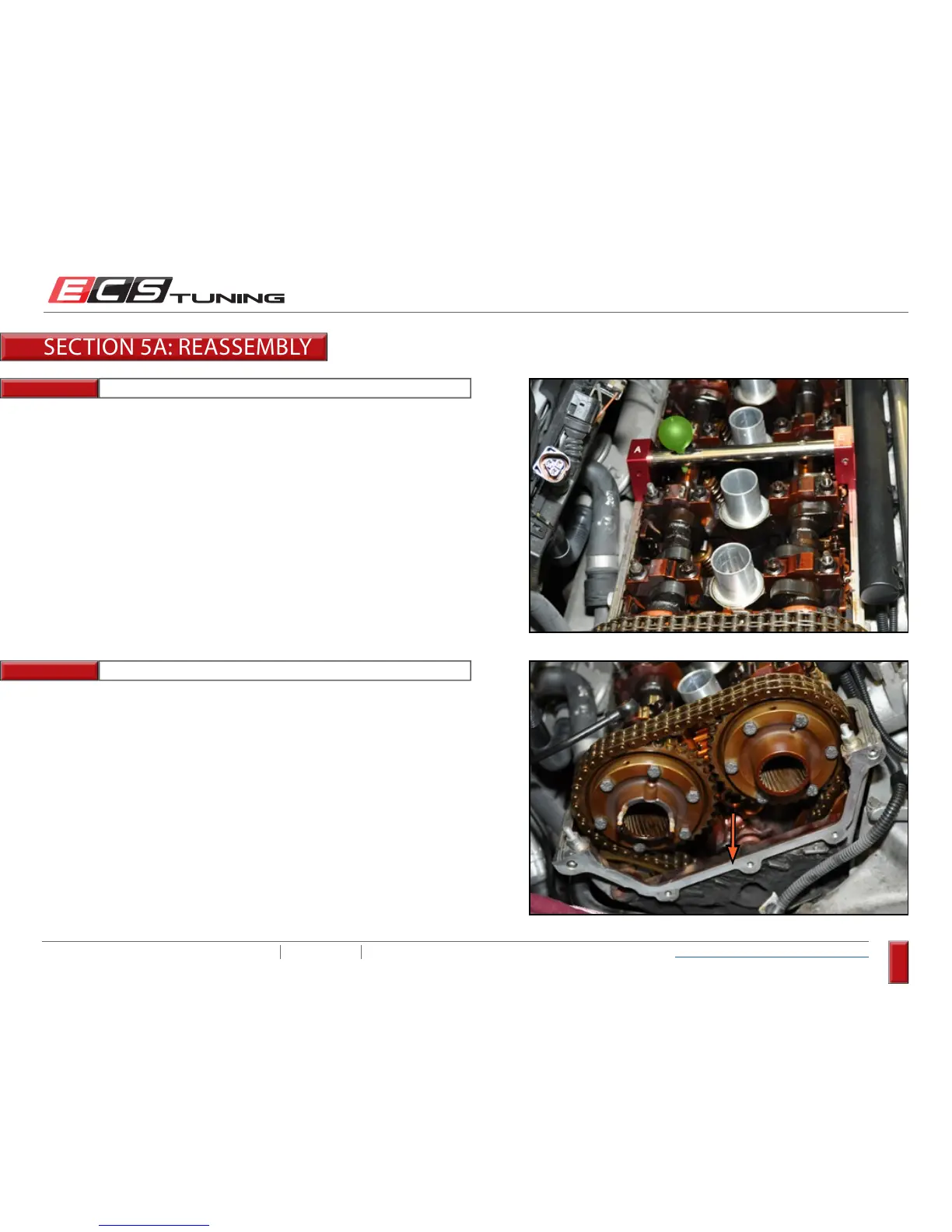

Thoroughly clean the Vanos gasket surface on the front of the cylinder
head.
On the exhaust, or “A” side, Insert the dowel pin through the alignment
bridge and into the hole in the camshaft. Move the camshaft back and
forth as necessary using a 24mm wrench in order to align the pin. Once
the pin is fully inserted, rotate the cam as required until the camshaft
bridge sits flat against the cylinder head.
Once the exhaust camshaft is aligned as described above, pull out the
dowel pin and remove the camshaft bridge.
SECTION 5A: REASSEMBLY
