ECS 661GX-M7

56
SiS964 SATA RAID Setup Guide

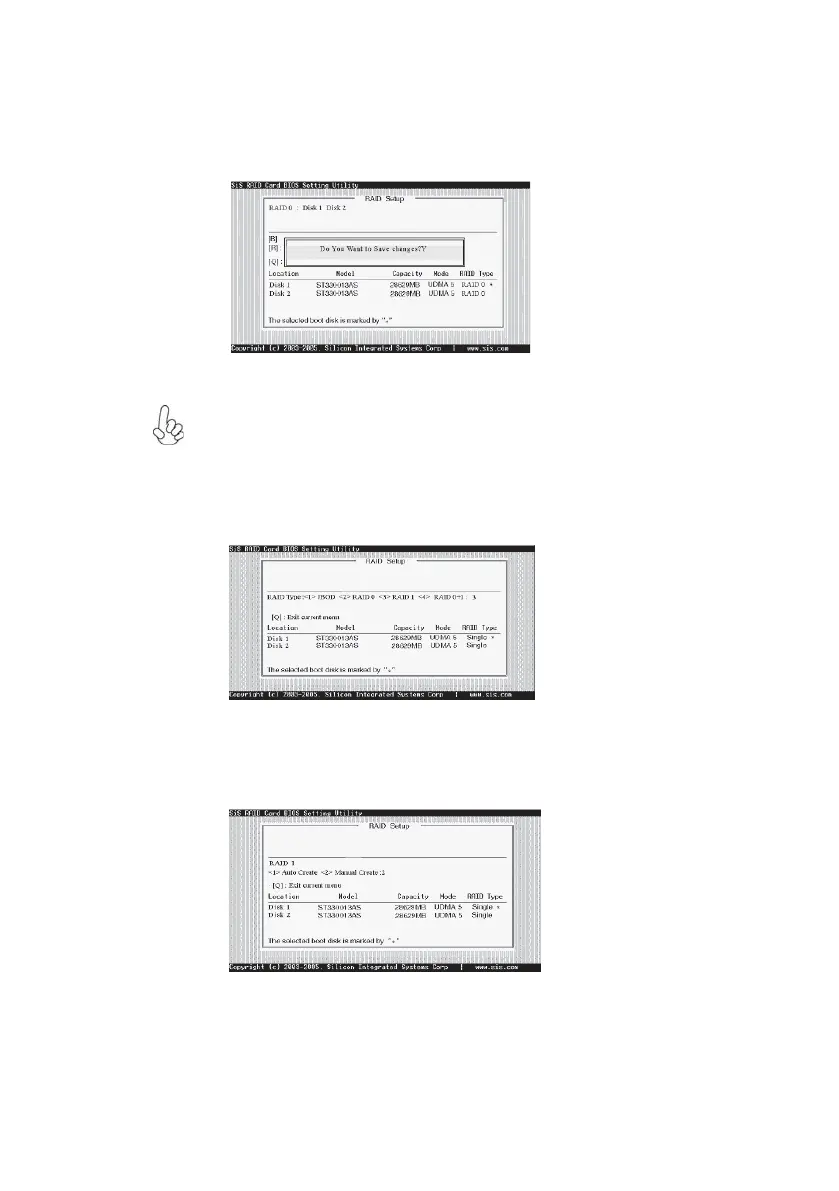

9 Press <Q> again to exit this BIOS utility and the red message frame will show.
Press <Y> and <Enter> to save changes.
10 Once the array has been created, you will need to FDISK and format the array
as if it were a new single hard drive.
Creating a RAID 1 (Mirror) Array
SIS 964/180 enables users to create Mirror arrays with 2 drives only.
To create a Mirror array, follow these steps:
1 Press <A> to start creating a RAID array.
2 Press <3> and <Enter> to select Mirror.
3 You will have two selections to create a RAID 1 array. The default value is
<1>. If you select <1>Auto Create, you can create a RAID 1 array faster and
easier. The result after creating will be show on step 7. Besides, you also
can select <2>Manual Create, see following steps.
