Installing the Motherboard
Checking Jumper Settings

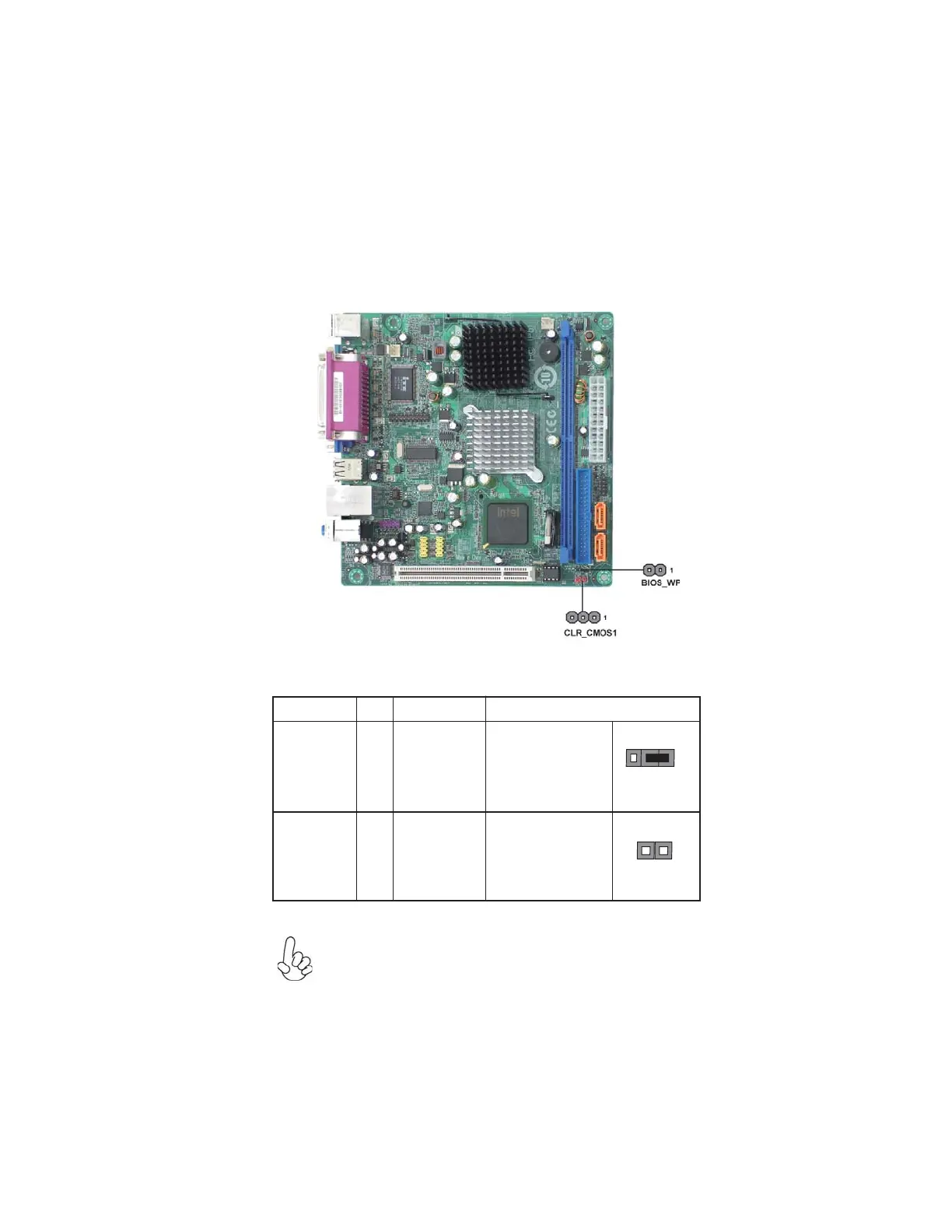

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save & Exit Setup”.
Jumper Type Description Setting (default)
CLR_CMOS1
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR CMOS
Before clearing the
CMOS, make sure to
turn the system off.
2-pin
OPEN: WRITE
UNPROTECT
SHORT: WRITE
PROTECT
BIOS_WP
CLR_CMOS1
1
1
BIOS_WP
FLASH
