Installing the Motherboard
Follow these instructions to install an add-on card:
1
Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2

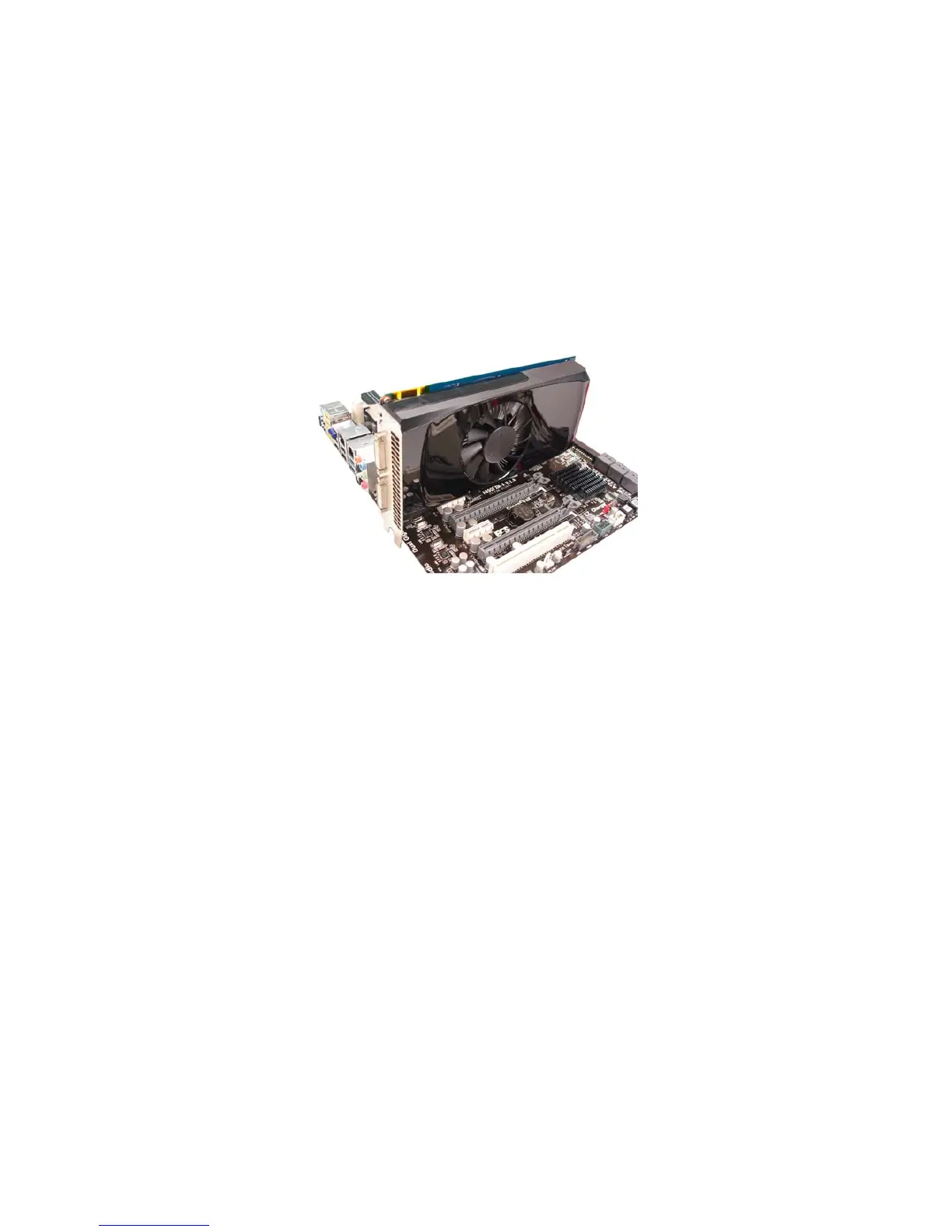

Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3
Secure the metal bracket of the card to the system case with a screw
.
* For reference only
