19
Installing the Motherboard
Connecting I/O Devices

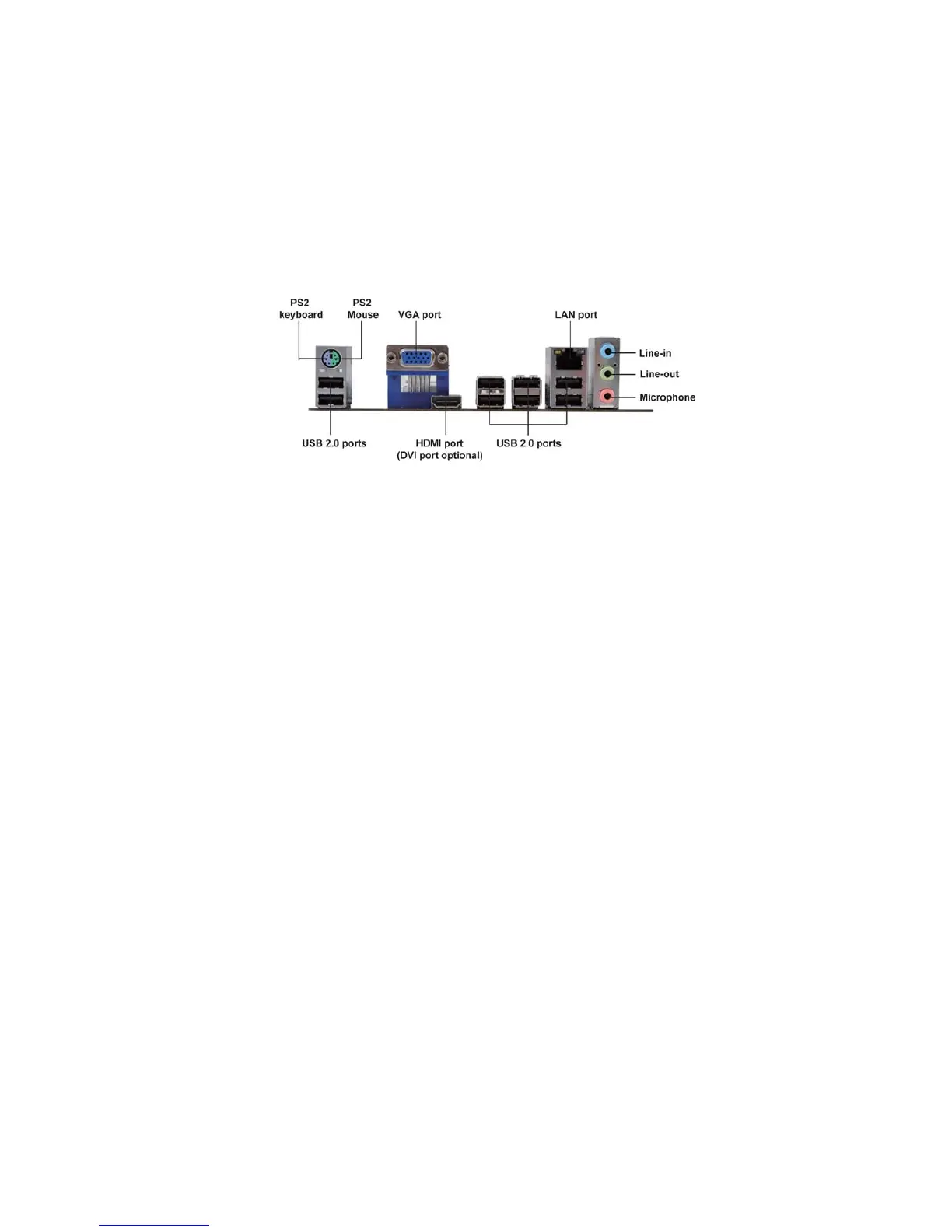

The backplane of the motherboard has the following I/O ports:
LAN Port Connect an RJ-45 jack to the LAN port to connect your
computer to the network.
PS/2 mouse and
keyboard combo
connector
Audio Ports Use the audio jacks to connect audio devices. The first jack
is for stereo line-in signal. The second jack is for stereo
line-out signal. The third jack is for microphone.
Connect the PS/2 Keyboard or PS/2 Mouse to the PS/2
combo port.
USB 2.0 Ports Use the USB 2.0 ports to connect USB 2.0 devices.
HDMI Port
(DVI port optional)
Connect the HDMI port to the HDMI devices.
VGA Port Connect your monitor to the VGA port.
