ECS A55F-M4

Chapter 2
20
A55F-M4 USER MANUAL
1 & 2. SYS_FAN(System Cooling FAN Power Connector) & CPU_FAN(CPU cooling
FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.

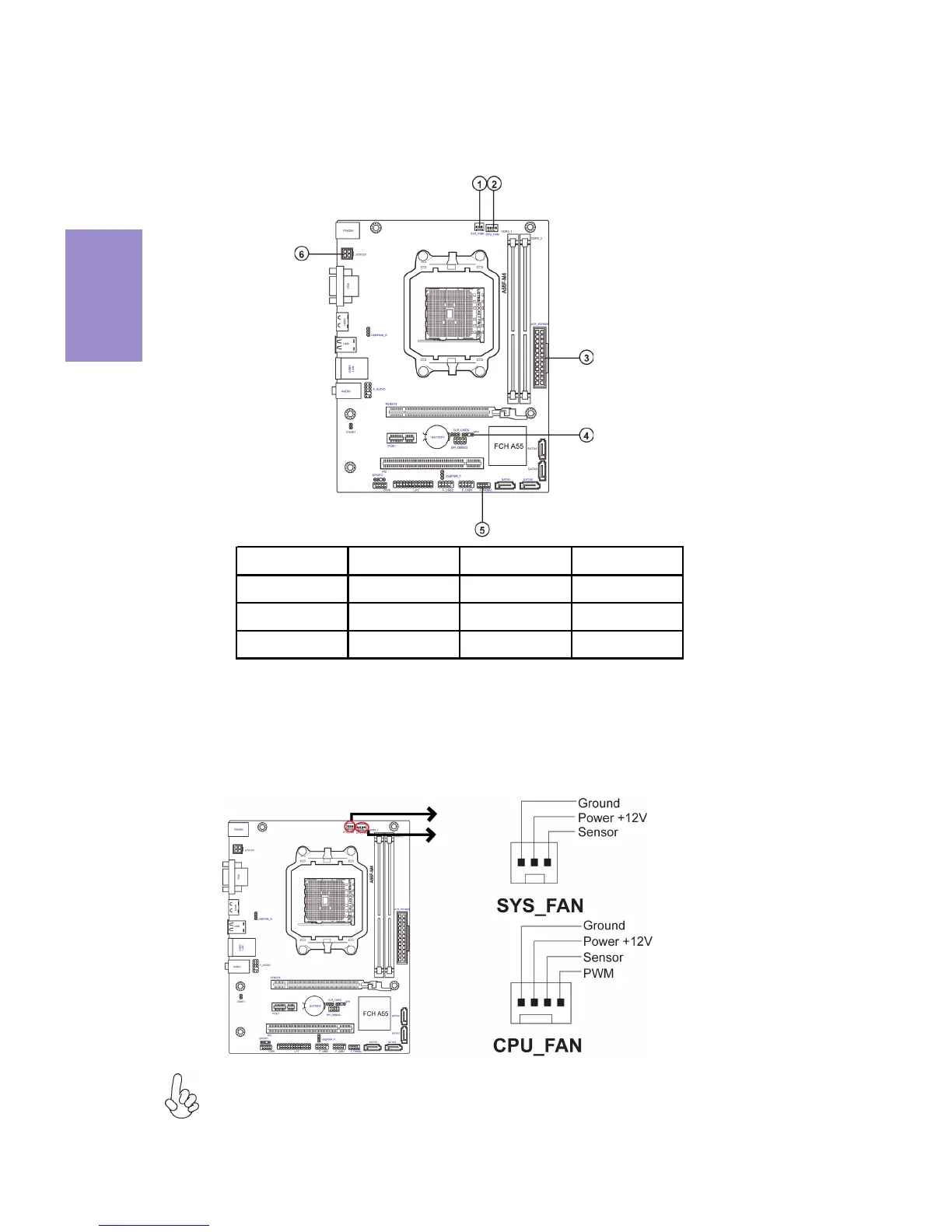

2-4-7. Connecting Case Components
No. Components No. Components
1 SYS_FAN 4 SPK
2 CPU_FAN 5 F_PANEL
3 ATX_POWER 6 ATX_12V
