ECS A55F-M4 User Manual

61
A55F-M4 USER MANUAL
Chapter 6
Chapter 6
Setting Up AMD A55 RAID Configuration
Setting Up a bootable RAID Array
This section explains how to configure a bootable AMD RAID array.
1. Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Setting Up the BIOS
2. Use the arrow keys to select Advanced menu (see Figure 1.1), then select
SATA Configuration and press Enter.

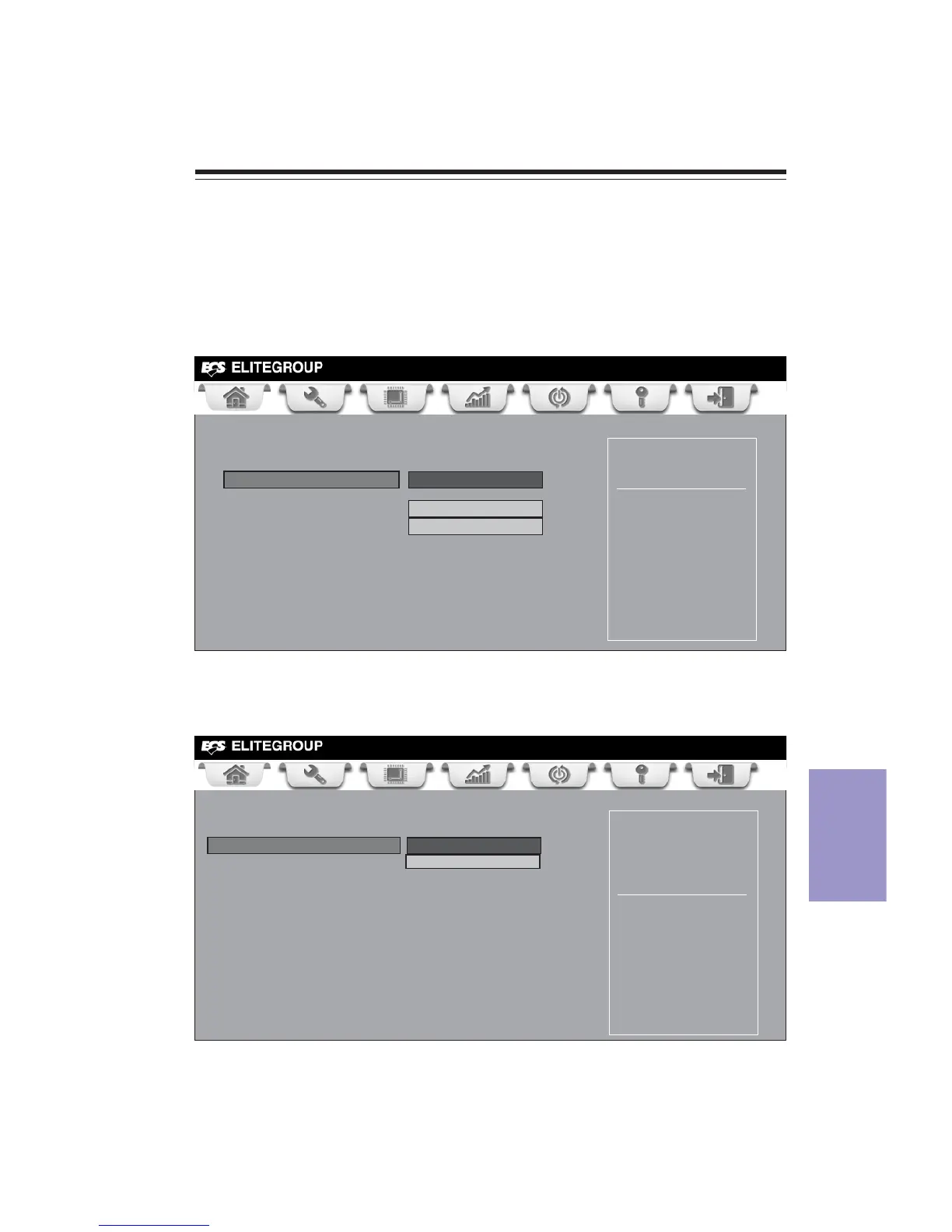

Figure 1.1 BIOS CMOS Setup Utility Main Screen
Figure 1.2 SATA Configuration Screen
3. Use the arrow keys to select the SATA Configuration (see Figure 1.2) and
globally set SATA Configuration to RAID.
Choose the system default
language
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
BIOS Information
System Language English
System Date Wed 09/12/2012
System Time 14:51:46
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
SATA Configuration
Serial-ATA Controller Enabled
SATA Mode IDE Mode
SATA Port1 Not Present
SATA Port2 Not Present
SATA Port3 Not Present
SATA Port4 Not Present
: Select Screen
/Click: Select Item
