A55F2-M3 USER MANUAL

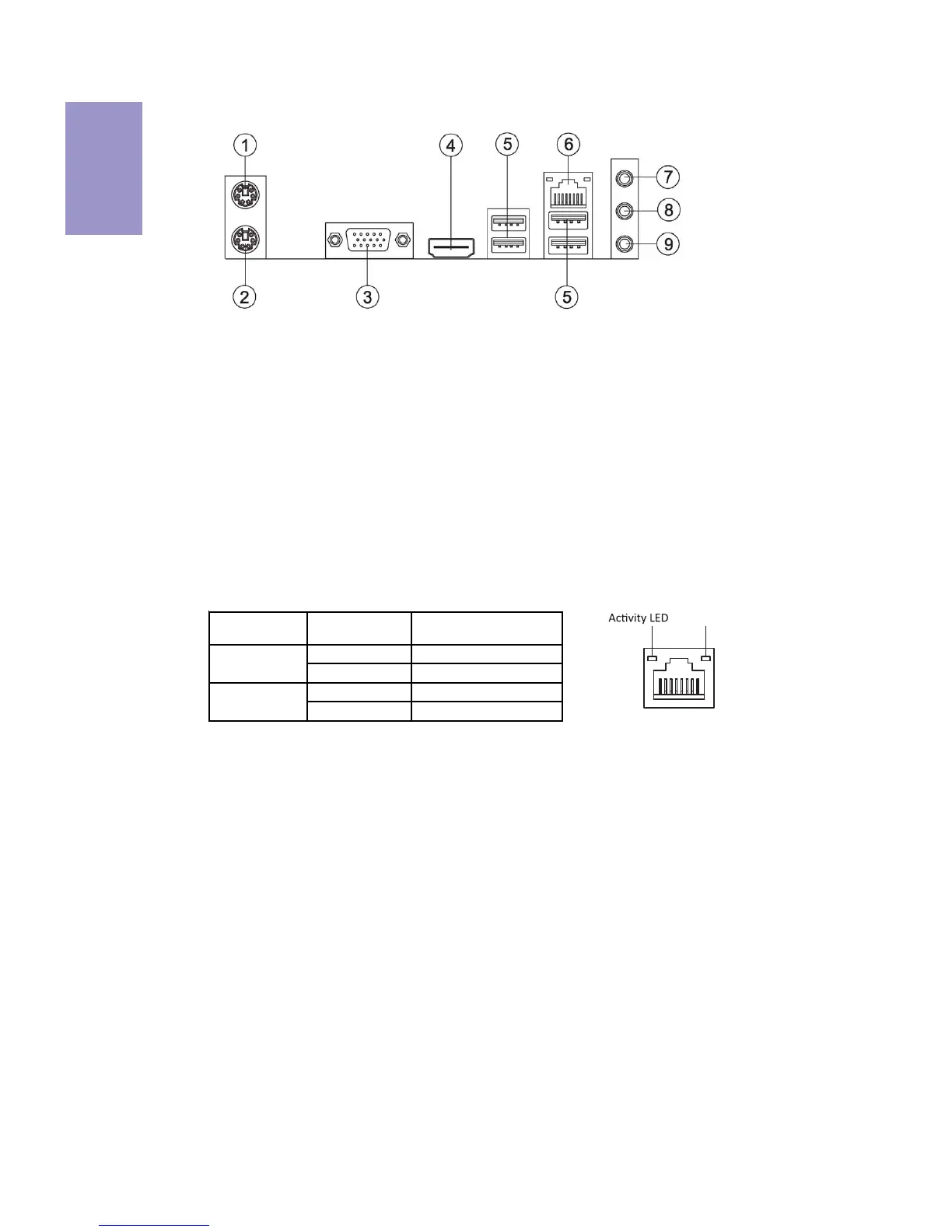

I/O Ports
1. PS/2 Mouse(green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard(purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. VGA Port
You can connect the display device to the VGA port.
4. HDMI Port
Y
ou can connect the display device to the HDMI port.
5. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
8. Line-out(lime)
It is used to connect to speakers or headphones.
9. Microphone(pink)
It is used to connect to a microphone.
LAN LED Status Description
