Installing the Motherboard

Checking Jumper Settings & Clear CMOS Button

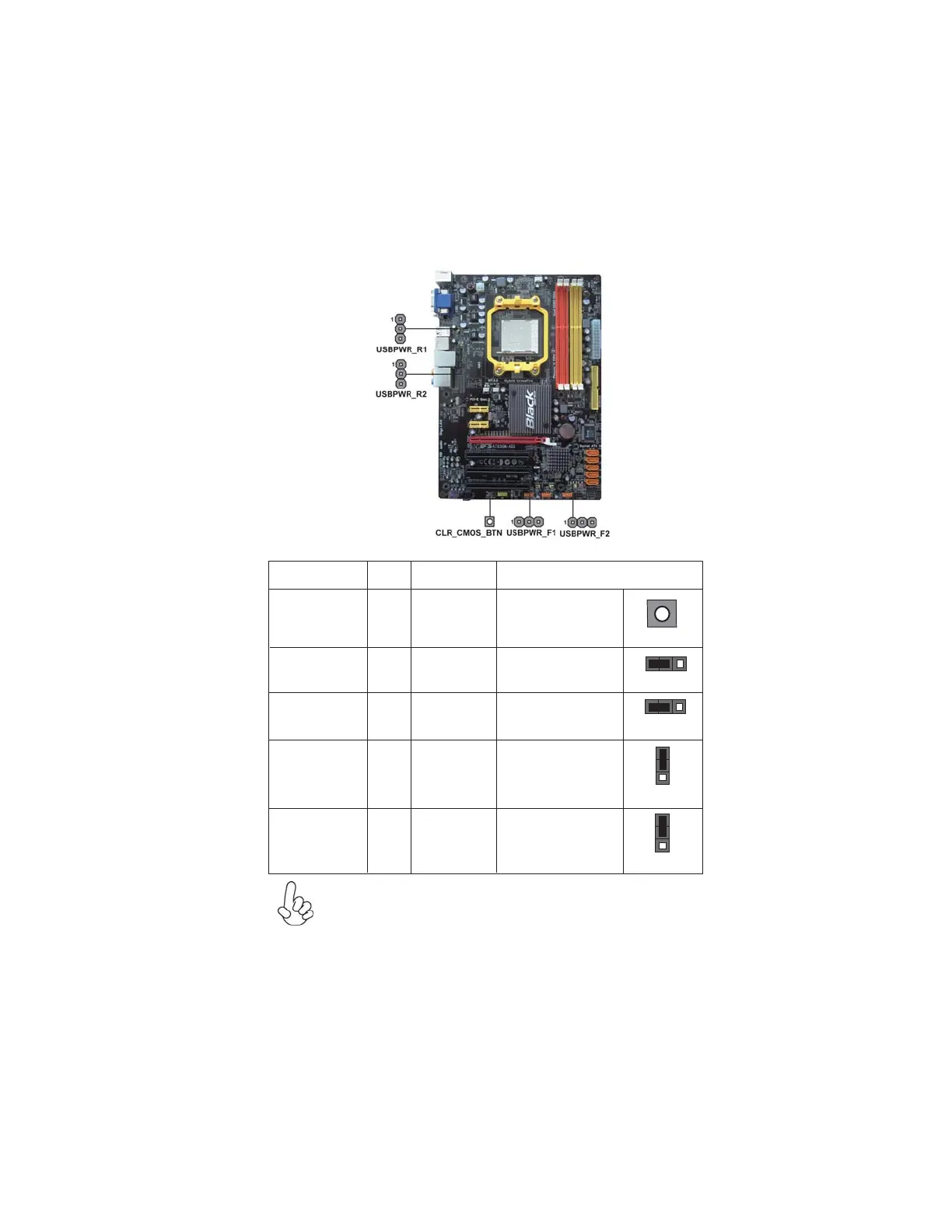

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

1. To avoid the system unstability after clearing CMOS, we recommend

users to enter the main BIOS setting page to “Load Default Settings” and

then “Save & Exit Setup”.

2. Make sure the power supply provides enough 5VSB voltage before

selecting the 5VSB function.

3. It is required that users place the USBPWR_F1~2 & USBPWR_R1~2

cap onto 2-3 pin rather than 1-2 pin as default if you want to wake up the

computer by USB/PS2 KB/Mouse.

USB Power

Cotroller

USBPWR_F1

Jumper

Type Description

Setting (default)

2-3: 5VSB

1-2: VCC5

USBPWR_F1 3-pin

3-pin

2-3: 5VSB

1-2: VCC5

USBPWR_F2

3-pin

2-3: 5VSB

USB Power

Cotroller

USB Power

Cotroller

NO PUSH: NORMAL

PUSH: CLEAR

CLEAR CMOS

button

CLR_CMOS_BTN

USBPWR_F2

USBPWR_R1

USBPWR_R2

1-2: VCC5

2-3: 5VSB

USBPWR_R1

3-pin

USB Power

Cotroller

CLR_CMOS_BTN
