Using the Motherboard Software

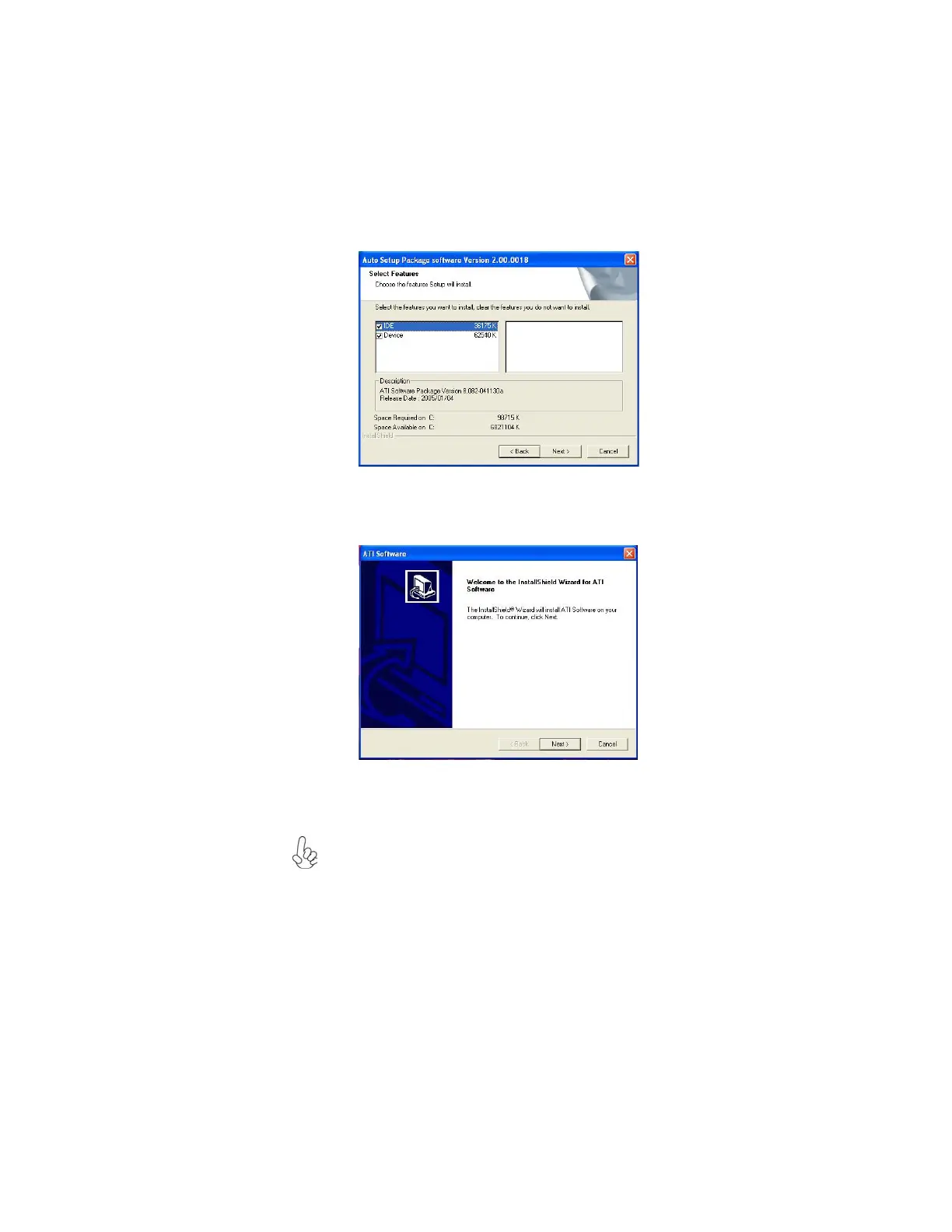

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default optionsare recom-

mended.

4. Click Next run the Installation Wizard. An item installation screen appears:

5. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the

onscreen instructions, confirm commands and allow the computer to

restart a few times to complete the installation.

Questions and Answers:

Need help?

Do you have a question about the ECS A785GM-AD3 and is the answer not in the manual?

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
