ECS A785GM-AD3 User Manual

Setting Up eJIFFY
68

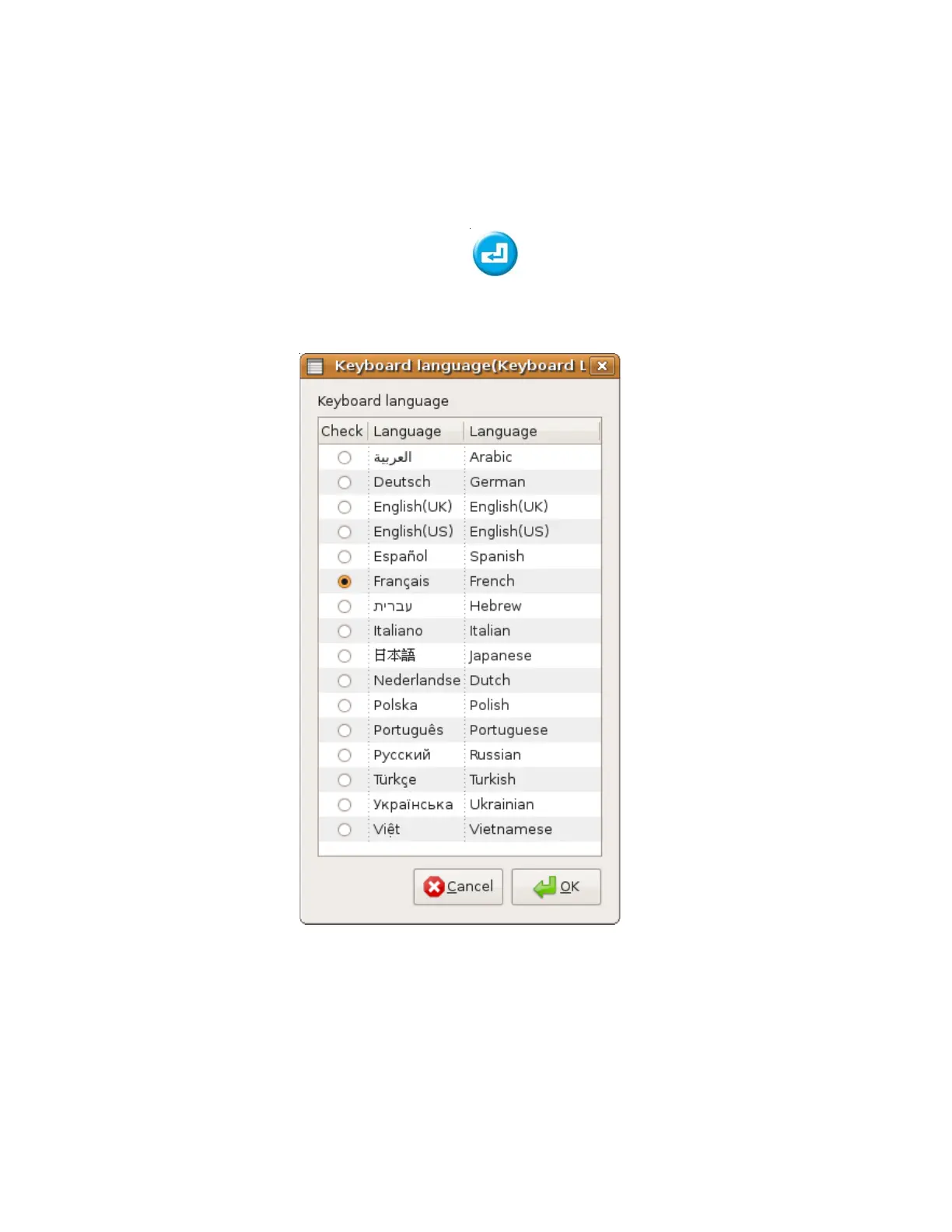

Step 2: Click “Keyboard Language” icon to open the keyboard selection
list, which offers several regional keyboard settings besides default English keyboard.
Step 3: Click the selected keyboard language (e.g. French) and press “OK”.

ECS A785GM-AD3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	5
PS/2 ports quantity	2
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	-
Audio chip	Realtek ALC888S
Certification	ROHS, EuP
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista, 7
PCI slots	3
Maximum graphics card memory	512 MB
RAID levels	0, 1
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	220 mm
Width	305 mm
