ECS A78F2P-M2 User Manual

Chapter 3
A78F2P-M2 USER MANUAL
33
Power Management Setup
This page sets up some parameters for system power management operation.
Resume By PME (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the PCI/PCI-E
Modem or PCI/PCI-E LAN card. You must use an ATX power supply in order to use this
feature. Use this item to do wake-up action if inserting the PCI/PCI-E card.
Resume By USB (Disabled)
This item allows you to enable or disable the USB device wakeup function from S3
mode.
EUP Function (Enabled)
This item allows user to enable or disable EUP support.
Resume By RING (Disabled)
An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call
on the modem) awakens the system from a soft off state.
Power LED Type (Dual Color LED)
This item shows the type of the Power LED.
Resume By PS2 MS (S3) (Disabled)
This item enables or disables you to allow mouse activity to awaken the system
from power saving mode.
Resume By PS2 KB (S3) (Disabled)
This item enables or disables you to allow keyboard activity to awaken the system
from power saving mode.
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

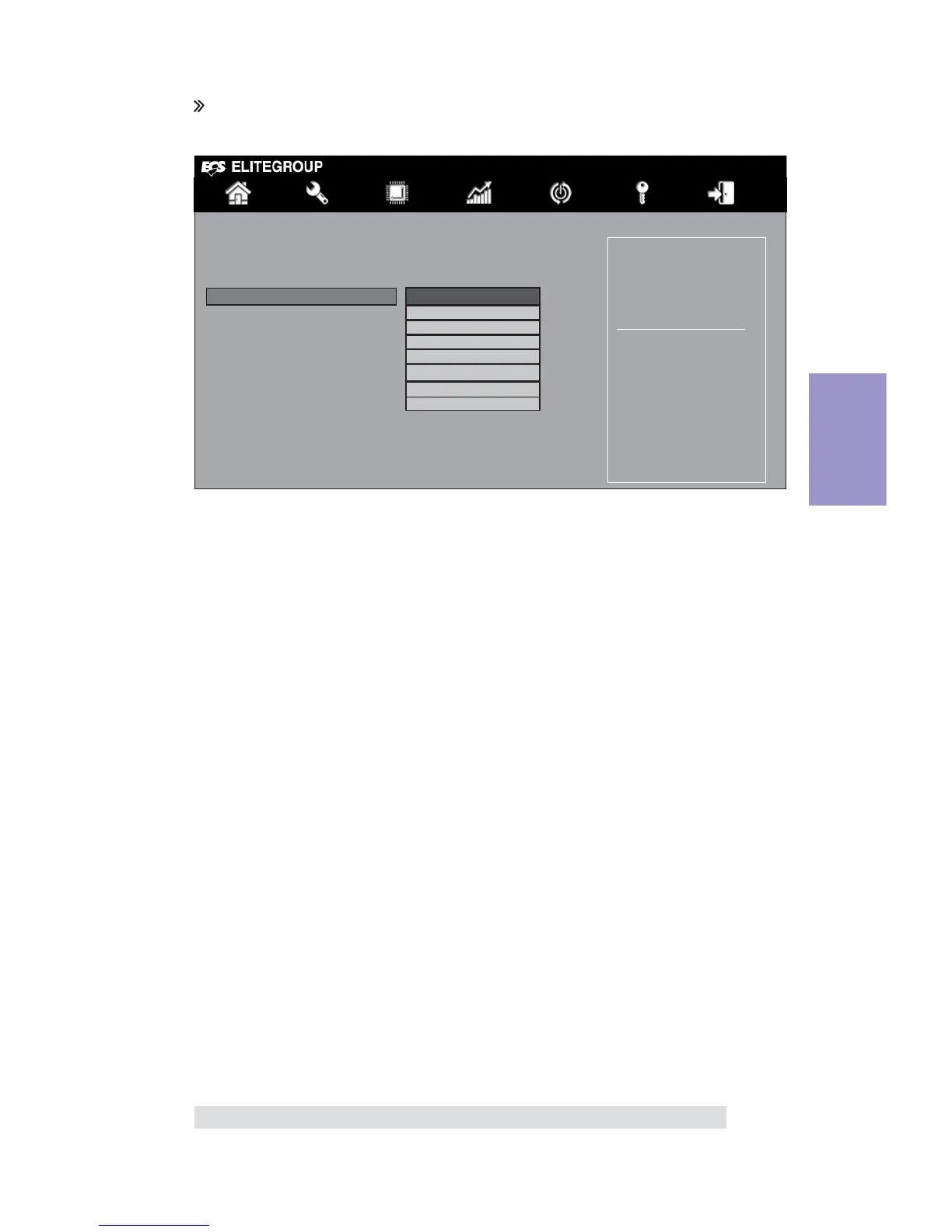

About Resume by Ring
Resume By RING
Resume By PME Disabled
Resume By USB Disabled
Resume By PS2 KB (S3) Disabled
Resume By PS2 MS (S3)
Resume By RTC Alarm Disabled
EUP Function
Power LED Type
Disabled
Disabled
Enabled
Power Management Setup
Dual Color LED
Resume By RTC Alarm (Disabled)
The system can be turned off with a software command. If you enable this item,
the system can automatically resume at a fixed time based on the system’s RTC
(realtime clock). Use the items below this one to set the date and time of the wake-
up alarm. You must use an ATX power supply in order to use this feature.
Press <Esc> to return to the Advanced Menu page.

ECS A78F2P-M2 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1866, 2133 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E
Maximum number of SMP processors	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
Peripheral (Molex) power connectors (4-pin)	3
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111G
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC662
Cooling type	Passive
Certification	CE/FCC, ErP/EuP, WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A78
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
DirectX version	11.1
Maximum resolution	1920 x 1200 pixels
Parallel processing technology support	Not supported
BIOS type	AMI
BIOS memory size	32 Mbit
Trial software	Muzee
Cables included	SATA
Bundled software	Norton Internet Security\\r CyberLink PowerDVD\\r CyberLink PowerDirector 9

Weight and Dimensions

Depth	210 mm
Width	244 mm
