A960M-M3 USER MANUAL
2-4-5. Connecting Optional Devices

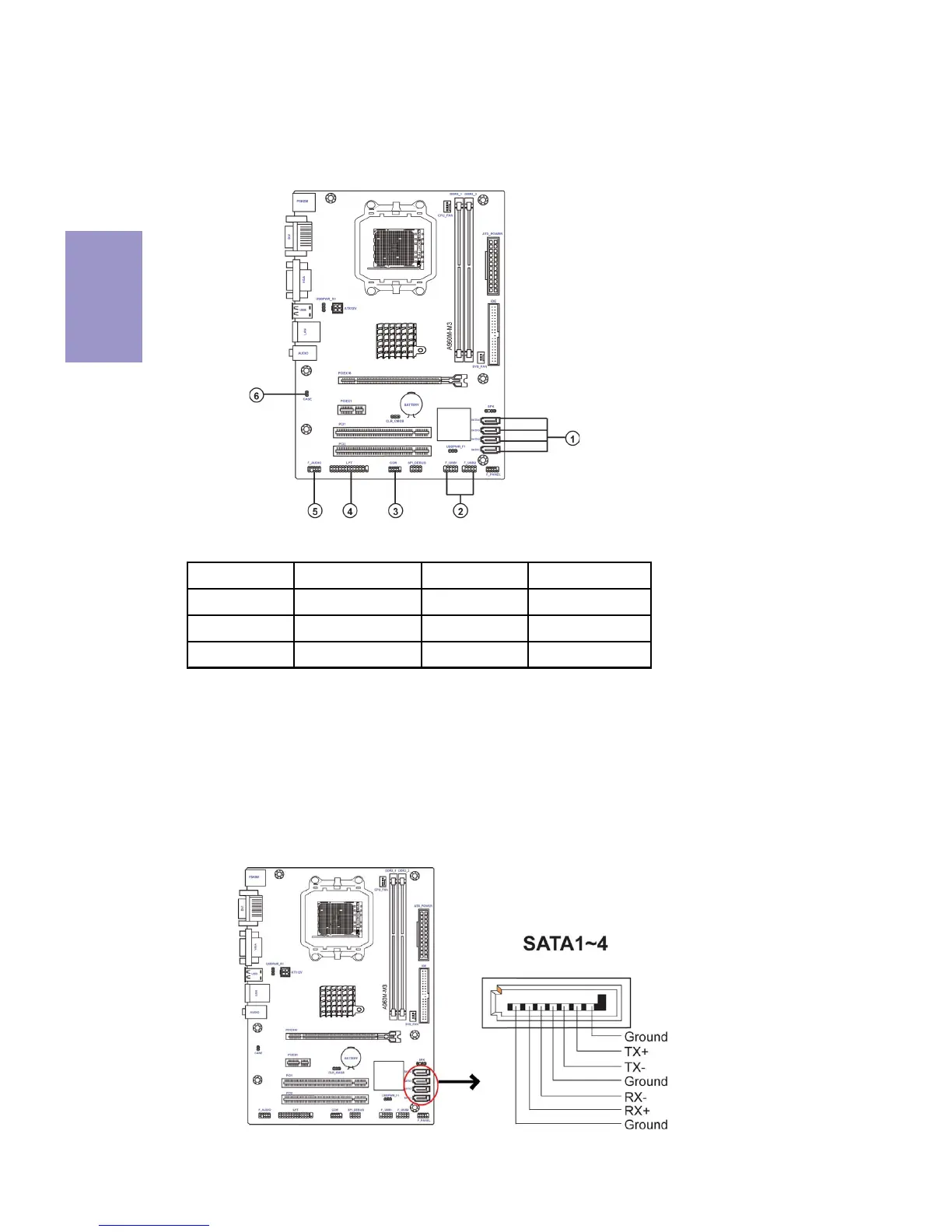

Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 SATA1~4 4 LPT
2 F_USB1~2 5 F_AUDIO
3COM6CASE
SATA1~4 connectors are used to support the Serial ATA 3.0Gb/s device, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Paral-
lel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.
1. SATA1~4: Serial ATA connectors
