10. If the sprinkler system actuates or another event introduces oxygen to the sprinkler system press the
orange VENT button to restart the purging cycle.
ECS SMART Vent Control Box

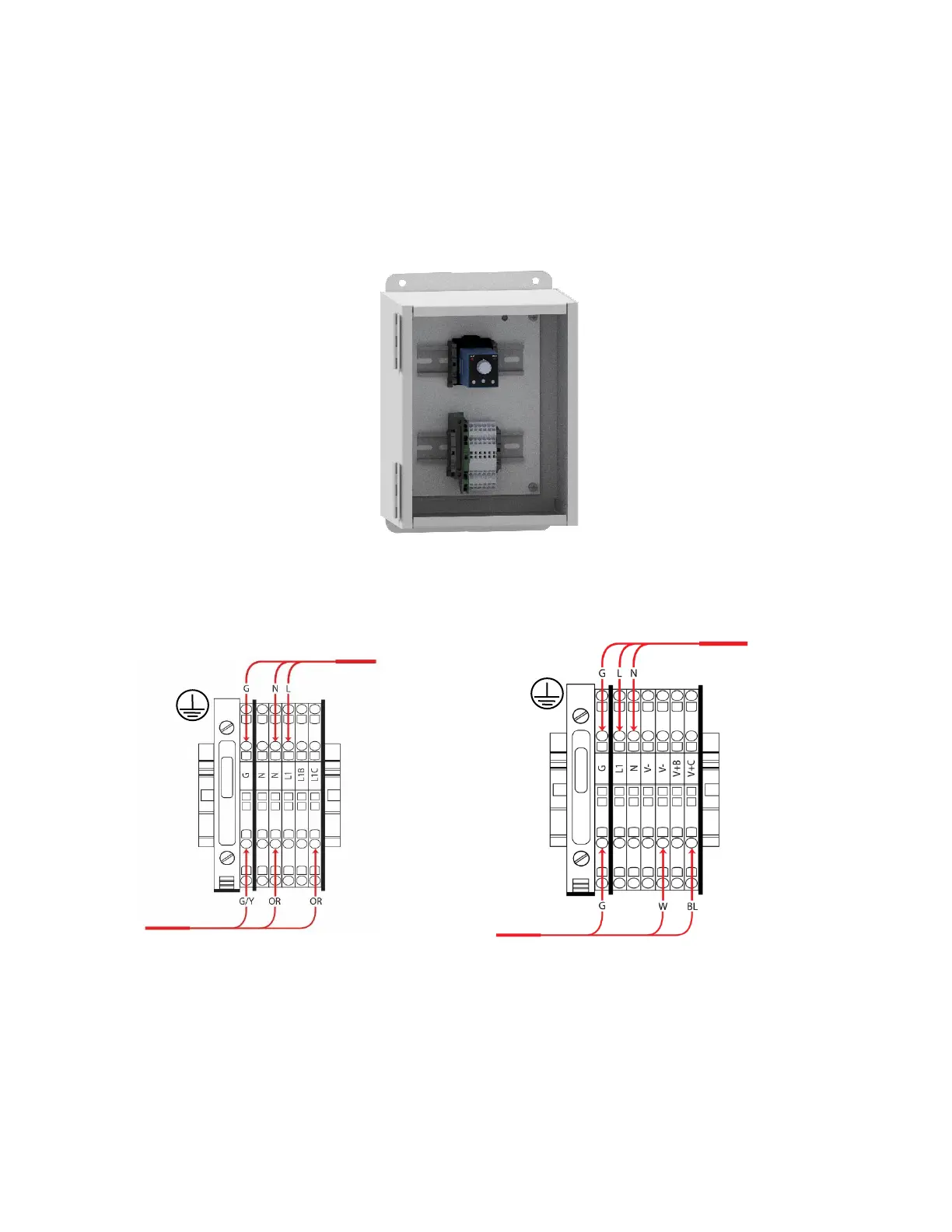

PSV-D Wiring Diagram PSV-DE Wiring Diagram
120 VAC/1 Phase/60 Hz
200-240 VAC/1 Phase
50 Hz
Solenoid
(120 VAC)
Solenoid
(24 VDC)
