Installing the Motherboard

Checking Jumper Settings

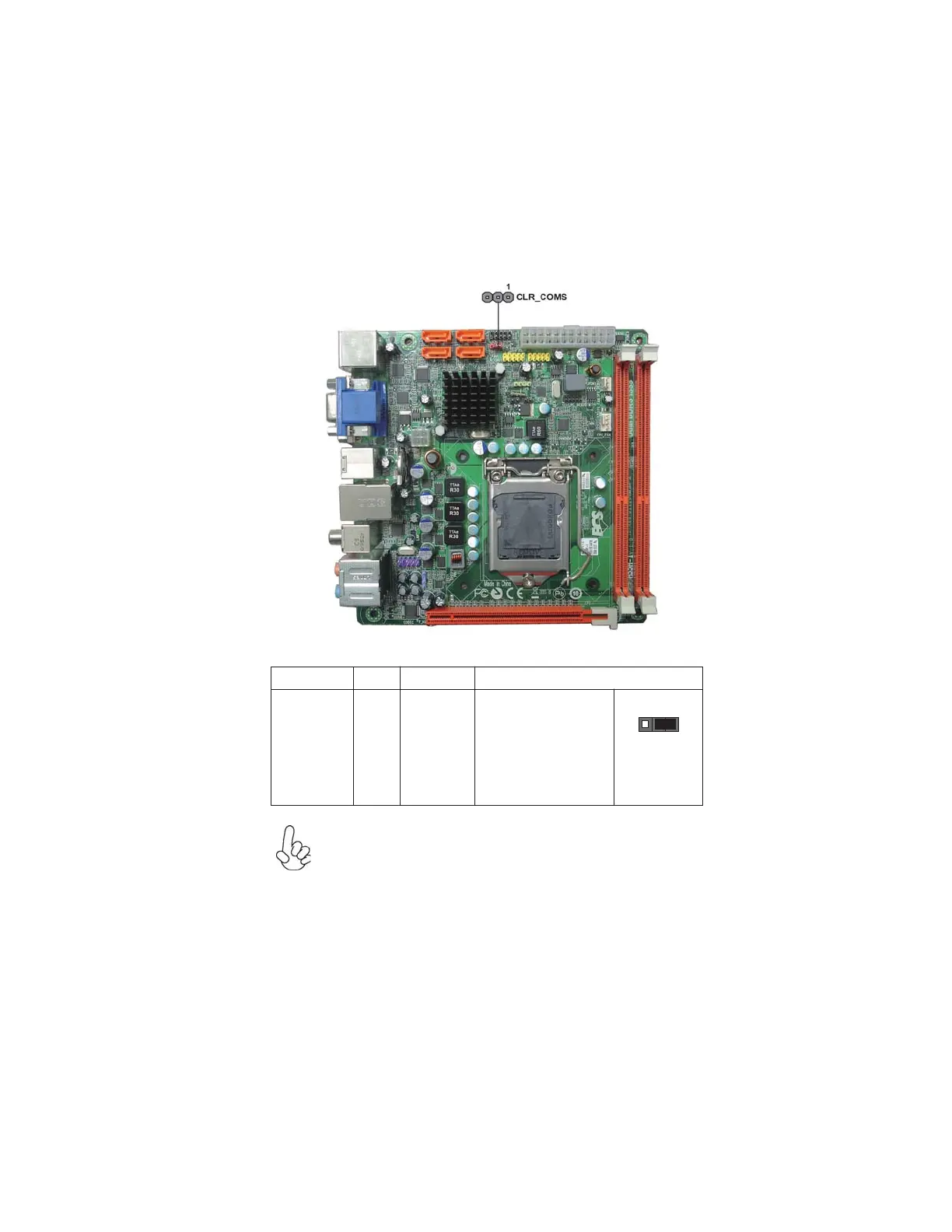

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

Jumper

Type

Description Setting (default)

CLR_CMOS

3-pin

Clear CMOS

1-2: NORMAL

2-3: CLEAR CMOS

Before clearing the

CMOS, make sure to

turn off the system.

CLR_CMOS

To avoid the system unstability after clearing CMOS, we recommend users

to enter the main BIOS setting page to “Load Default Settings” and then

“Save and Exit Setup”.

Questions and Answers:

Need help?

Do you have a question about the ECS H55H-I and is the answer not in the manual?

ECS H55H-I Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	-
Compatible processor series	Intel Core i3, Intel Core i5
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	mini ITX
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
