Installing the Motherboard

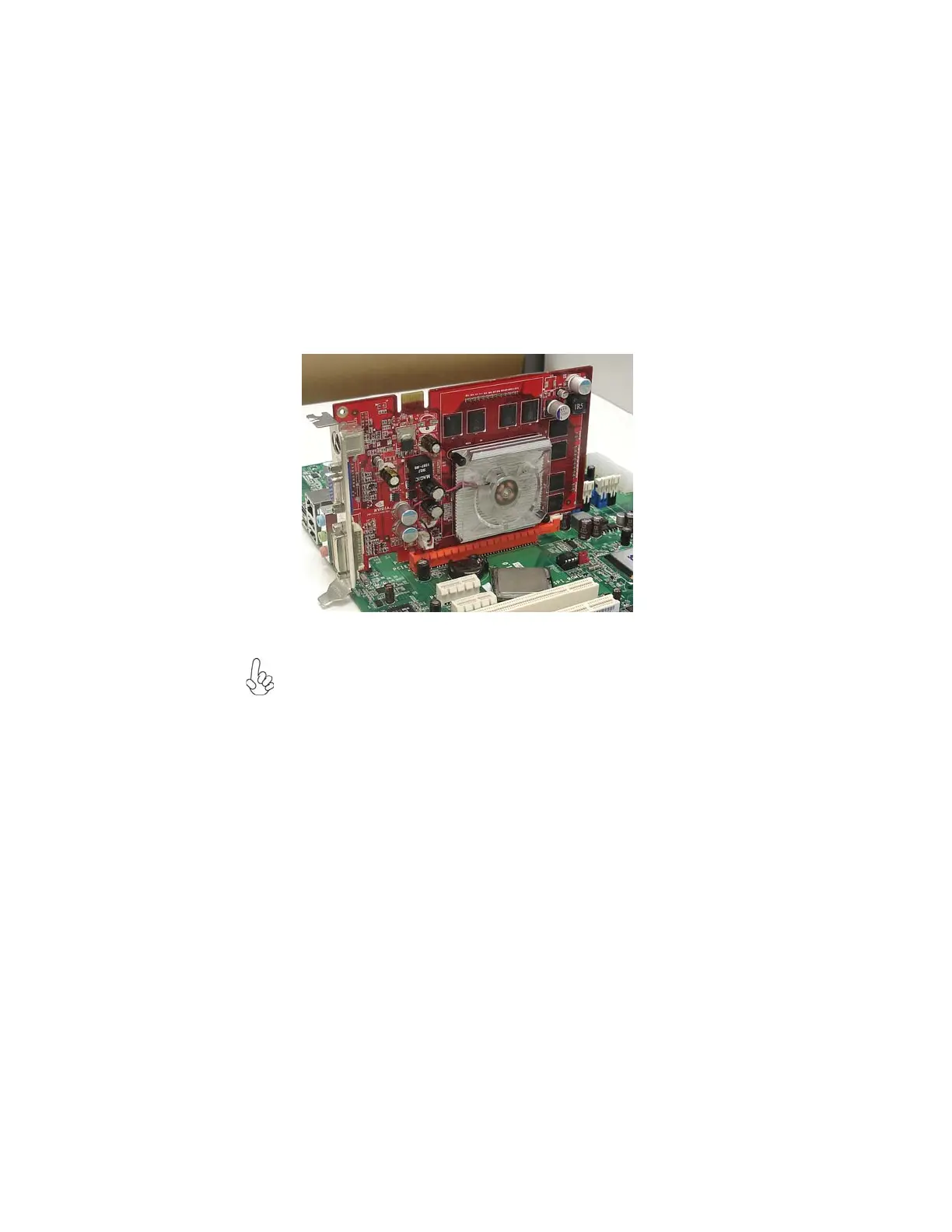

Follow these instructions to install an add-on card:

1 Remove a blanking plate from the system case corresponding to the

slot you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

2. The onboard PCI interface does not support 64-bit SCSI cards.

1. For some add-on cards, for example graphics adapters and network

adapters, you have to install drivers and software before you can begin using

the add-on card.

Questions and Answers:

Need help?

Do you have a question about the ECS H55H-I and is the answer not in the manual?

ECS H55H-I Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	-
Compatible processor series	Intel Core i3, Intel Core i5
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	mini ITX
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
