ECS H55H-I User Manual

22
Installing the Motherboard
Users please note that the fan connector supports the CPU cooling fan
of 1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU Cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
ATX_POWER: ATX 24-pin Power Connector
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
2 +3.3V 14 -12V

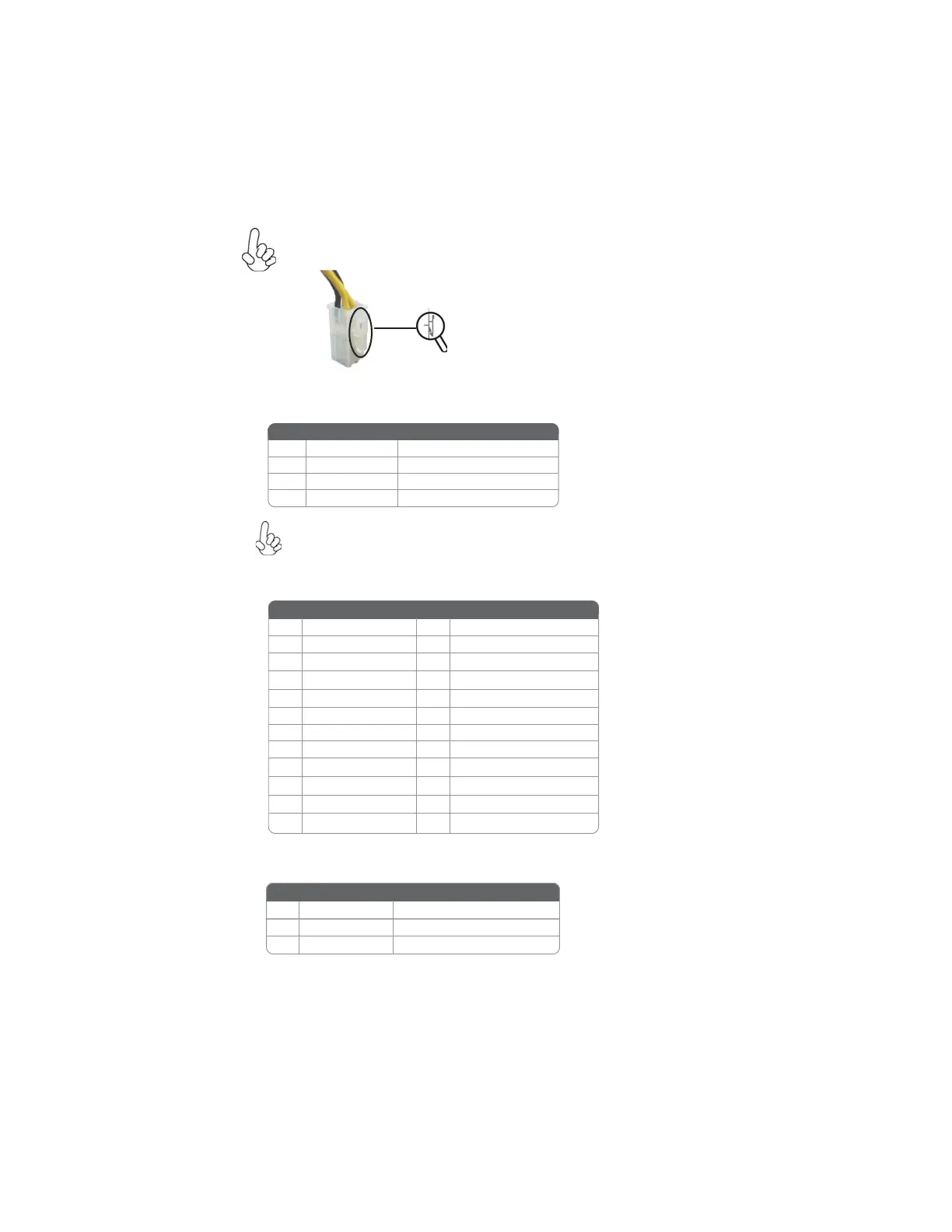

The ATX12V4P power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V4P
match perfectly.
Connecting 4-pin power cable
4-pin power cable
Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3 Sense Sensor
SYS_FAN: Cooling FAN Power Connector

ECS H55H-I Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	-
Compatible processor series	Intel Core i3, Intel Core i5
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	mini ITX
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111D(L)
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
