ECS H61H2-MV User Manual

H61H2-I5 USER MANUAL
24
Chapter 2
2.Select display devices, set the multiple displays option and to extend destop for
display “Multi-Monitor technology”.
Change the appearance of your displays
Control Panel All Control Panel Items Display Screen Resolution
Search Control Panel
1
3
4
Detect
Identify
3. DELL U2410Display:
Resolution:
1920 x 1200 (recommended)
Orientation: Landscape
Disconnect this displayMultiple displays:
Make this my main display
Advance settings
Make text and other items larger or smaller
What display settings should I choose?
OK Cancel Apply
2
You must select Apply before making additional changes.
!
Extend desktop to this display
Disconnect this display

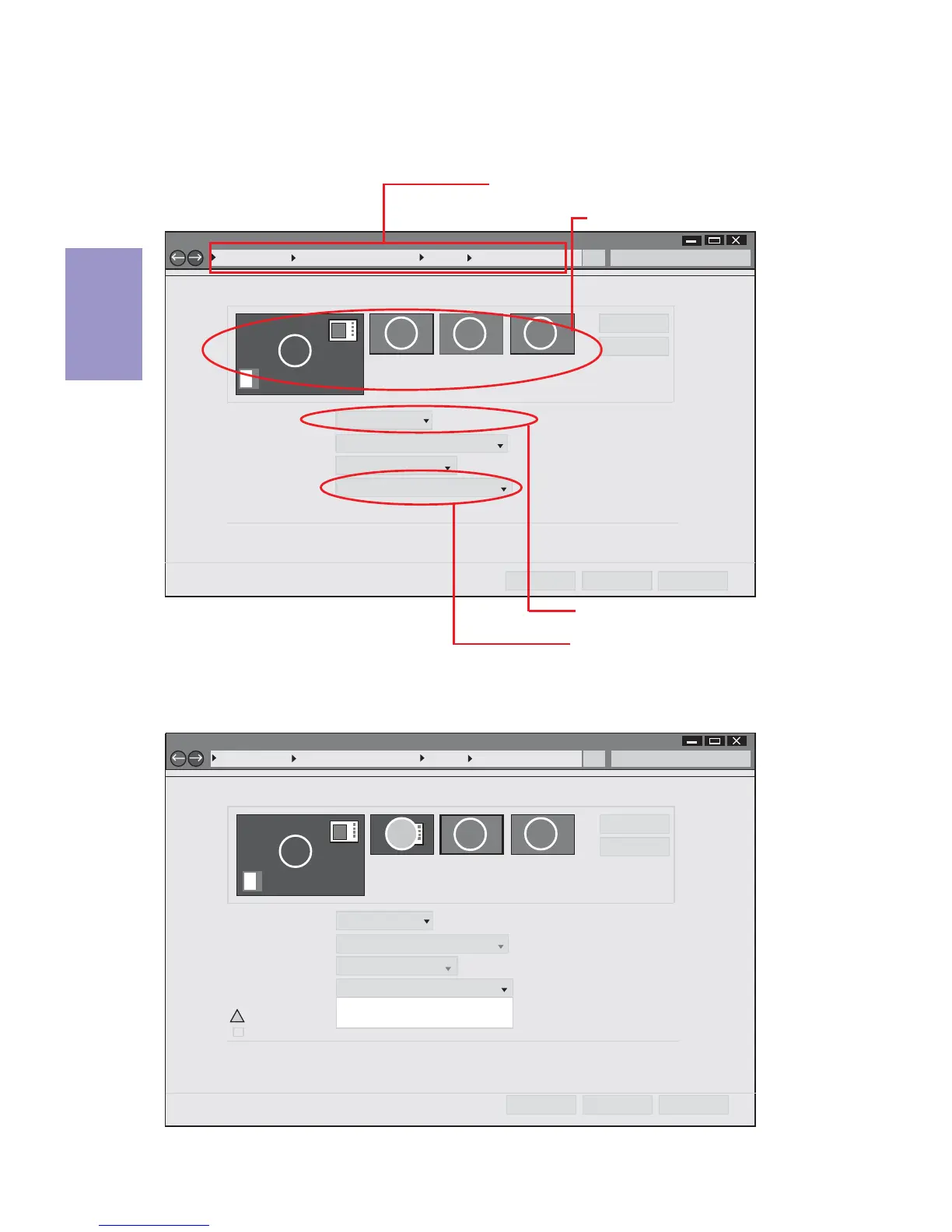

Step 4. Change the appearance of your displays under Windows 7.
Change the appearance of your displays
Control Panel All Control Panel Items Display Screen Resolution
Search Control Panel
1
2
3
4
Detect
Identify
1. DELL U2410Display:
Resolution: 1920 x 1200 (recommended)
Orientation: Landscape
Extend desktop to this displayMultiple displays:
This is currently your main display.
Advance settings
Make text and other items larger or smaller
What display settings should I choose?
OK Cancel Apply
Show the path of the setting location
Display devices
The type of the display
Set the multiple displays
1. Enter the Control Panel menu, select the Display in the All Control Panel Items
and click the Screen Resolution, then appears the following screen.

ECS H61H2-MV Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Serial port headers	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC662
Certification	CE/FCC, ErP/EuP, WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 8, Windows 8 x64, Windows XP Home, Windows XP Home x64
DirectX version	11
Parallel processing technology support	Not supported
BIOS type	AMI
BIOS memory size	64 Mbit
Trial software	Muzee
Bundled software	eBLU, eDLU, eSF\\r Norton Internet Security, CyberLink PowerDVD, CyberLink PowerDirector 9

Weight and Dimensions

Depth	170 mm
Width	195 mm
