ECS H61H2-MV User Manual

38
H61H2-I5 USER MANUAL
Chapter 3

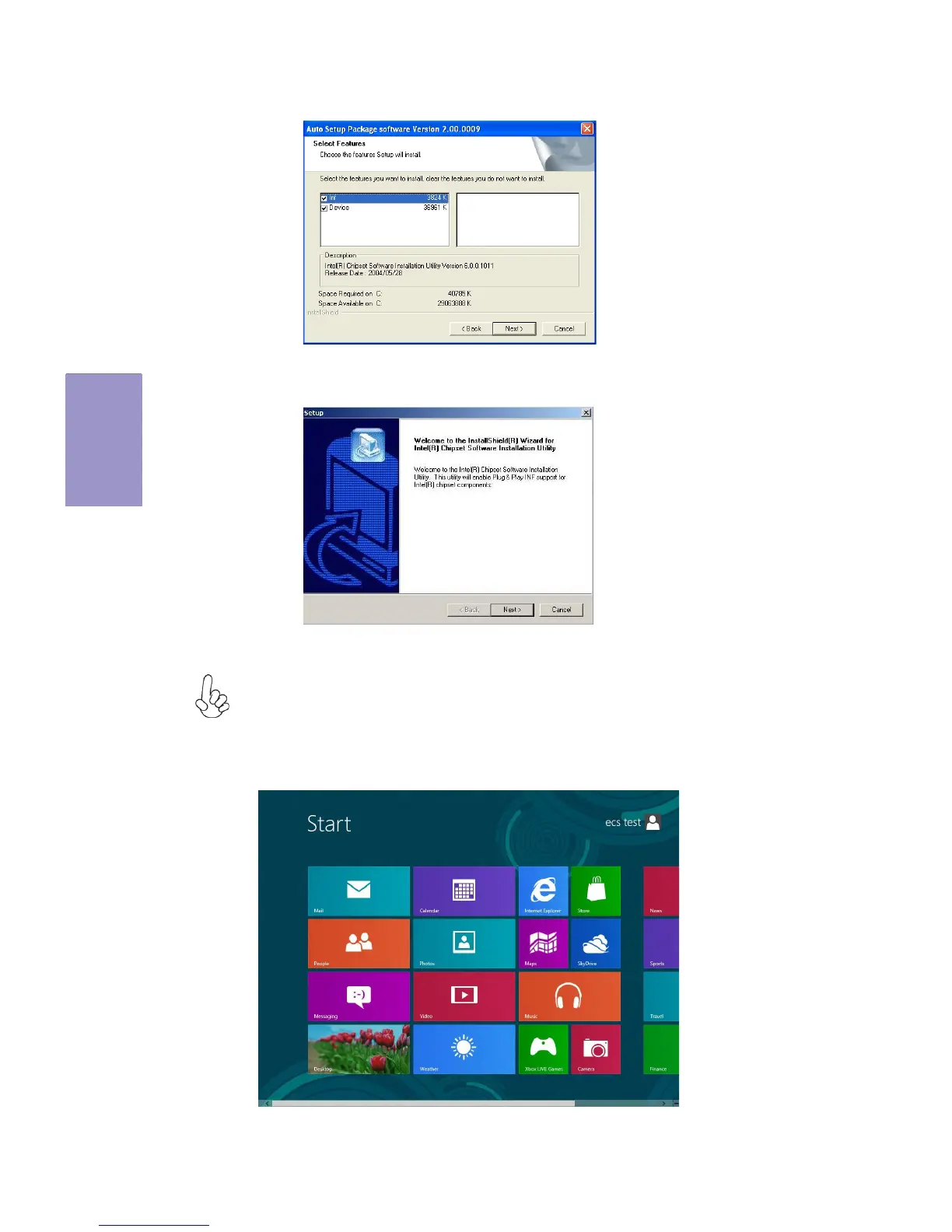

Windows 8 will show the following screen after system restart, you must
select “Desktop” in the bottom left to install the next driver.
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recommended.
5. Follow the instructions on the screen to install the items.
Drivers and software are automatically installed in sequence. Follow the
onscreen instructions, confirm commands and allow the computer to re-
start a few times to complete the installation.
4. Click Next to run the Installation Wizard. An item installation screen appears:

ECS H61H2-MV Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Serial port headers	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111E
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC662
Certification	CE/FCC, ErP/EuP, WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 8, Windows 8 x64, Windows XP Home, Windows XP Home x64
DirectX version	11
Parallel processing technology support	Not supported
BIOS type	AMI
BIOS memory size	64 Mbit
Trial software	Muzee
Bundled software	eBLU, eDLU, eSF\\r Norton Internet Security, CyberLink PowerDVD, CyberLink PowerDirector 9

Weight and Dimensions

Depth	170 mm
Width	195 mm
