ECS H77H2-M3 User Manual

67
H77H2-M4 USER MANUAL
Chapter 5
Chapter 5
Intel
® ®
® ®
®
Matrix Storage Manager RAID Configuration
The Intel
®
Matrix Storage Manager allows you to configure RAID 0, and 1 sets on the
external Serial ATA hard disk drives.
1. Install the external Serial ATA hard disk drive (HDD) on your system.
2. Set the Onboard SATA Mode item in the BIOS to RAID...
See section “Integrated Peripherals” for details.
Before creating a RAID set
1. One SATA HDD.
2. A write-enabled floppy disk.
3. Microsoft
®
Windows
®
OS installation disk (Windows XP).
4. Motherboard support CD with Intel
®
Matrix Storage Manager driver.
3. Enter the Intel
®
Matrix Storage Manager option to set up your RAID configu-
ration.
4. Create an Intel
®
Matrix Storage Manager driver disk for Windows
®
OS instal-
lation. See section “Creating a RAID driver disk” for details.
5. Install the Intel
®
Matrix Storage Manager driver after the Windows
®
OS had
been installed.
Complete the following steps before you create a RAID set:
Prepare the following items:
Determines how SATA
controller(s) operate.

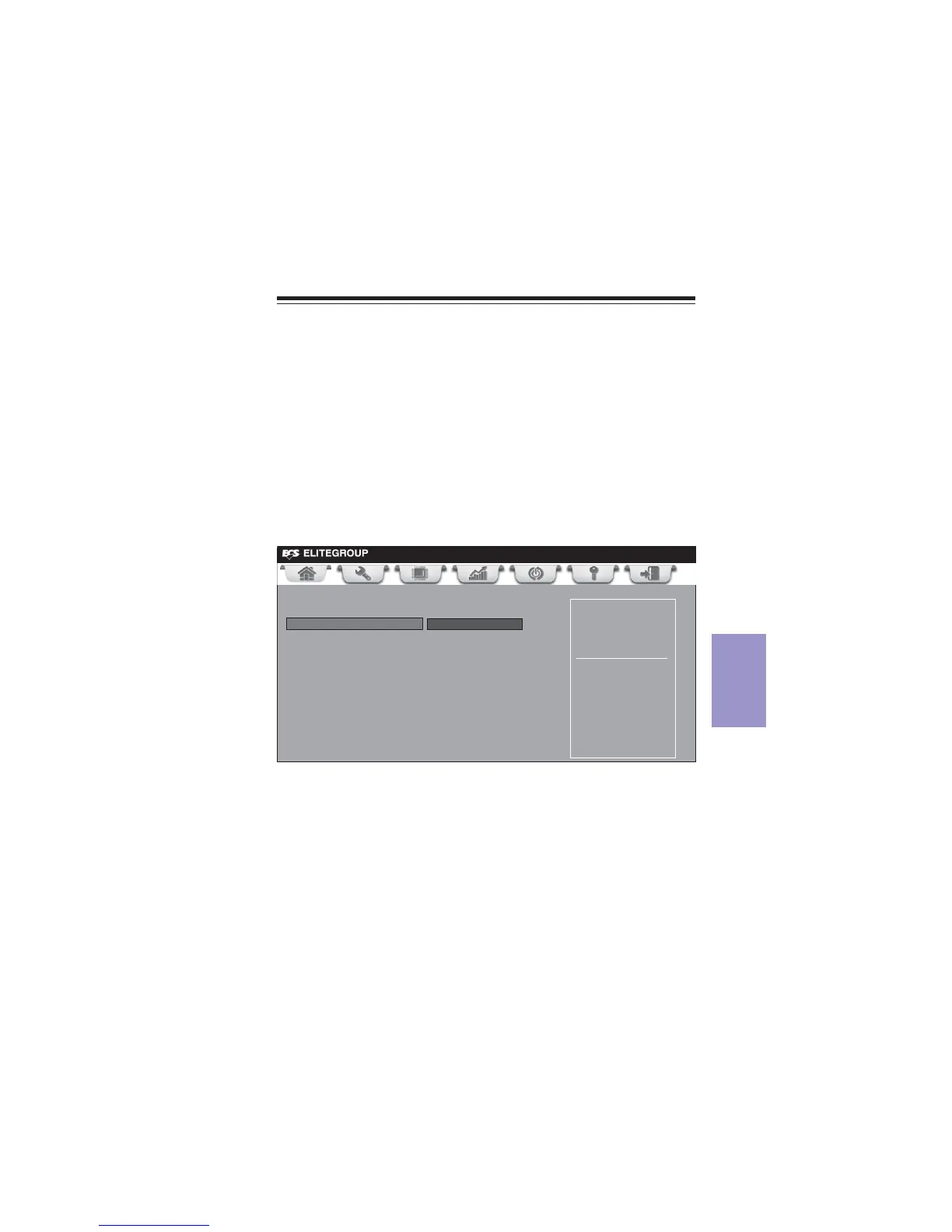

Main Advanced Chipset M.I.B III Boot Security Save & Exit
SATA Configuration
SATA Mode IDE Mode
SATA Port1 Not Present
SATA Port2 Not Present
SATA Port3 Not Present
SATA Port4 Not Present
SATA Port5 Not Present
SATA Por6 Not Present
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click : Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
