Chapter 3
H77H2-M4 USER MANUAL
50
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.

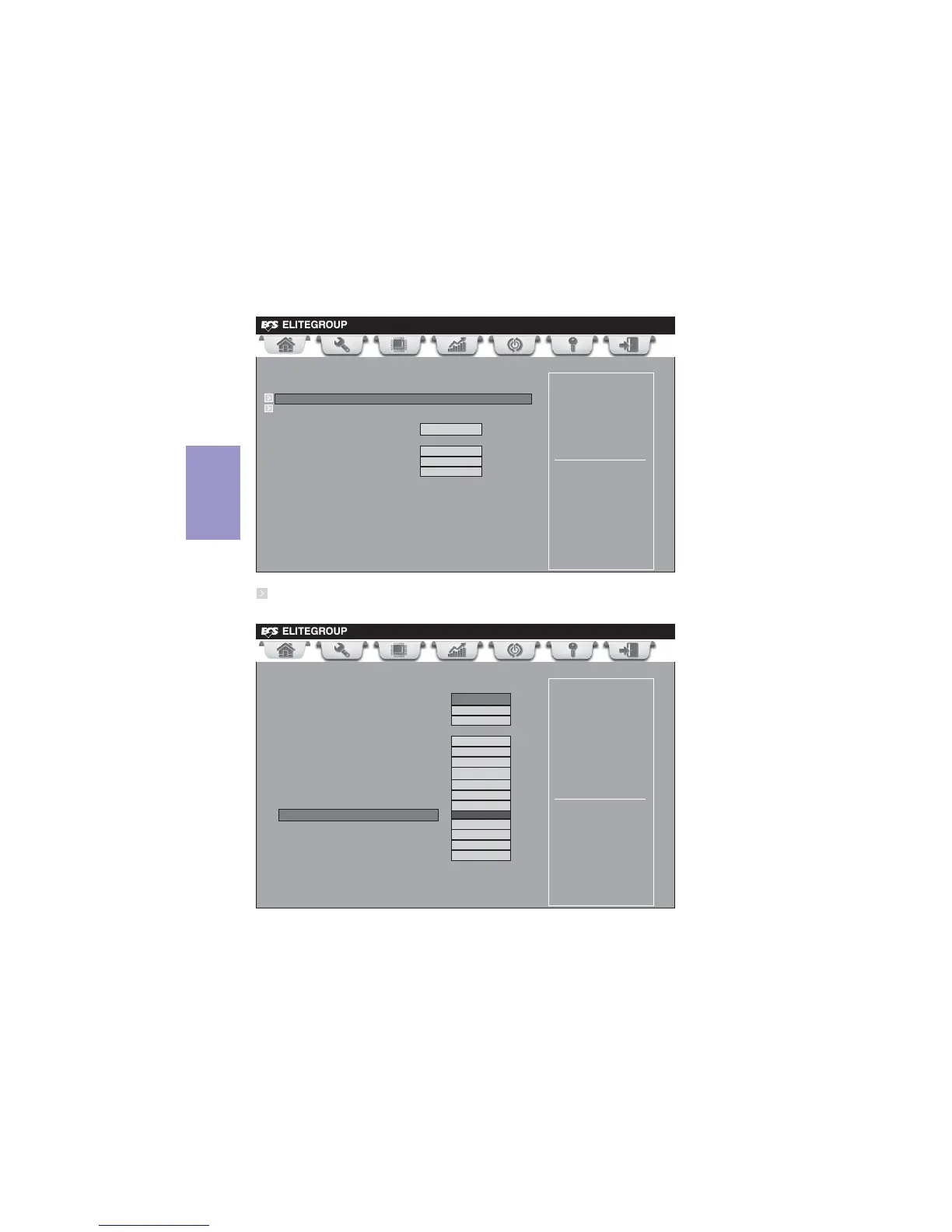

M.I.B III (MB Intelligent BIOS III) Menu
CPU OverClocking
Configuration
Main Advanced Chipset M.I.B III Boot Security Save & Exit
M.I.B III (MB Intelligent BIOS III)
CPU OverClocking Configuration
Chipset OverClocking Configuration
B.O.M.P Technology Enabled
CPU Voltage Auto
VTT Voltage Auto
DIMM Voltage Auto
Genuine Intel(R) CPU @ 2.20GHz
Processor Speed 2200 MHz
Memory Frequency 1333 MHz
Total Memory 2048MB (DDR3 )
CPU Current Voltage 0.888V
VTT Current Voltage 1.044V
DIMM Current Voltage 1.536V
CPU OverClocking Configuration
Scroll to this item to view the following screen:
CPU Ratio (35)
This item allows users to control non turbo CPU ratio.
CPU Frequency (1/100 MHz) (10000)
This item shows the information of CPU Frequency.
Main Advanced Chipset M.I.B III Boot Security Save & Exit
Power Limit 2 Value (1/8
Watt)
CPU OverClocking Configuration
CPU Frequency (1/100 MHz) 10000
CPU Ratio 35
Enhanced Intel SpeedStep Technology Enabled
Turbo Mode Enabled
RuntimeTurbo Enable Disabled
Over Clocking Extra Vol. (1/256 V) 0
IA Core Current Max (1/8 Amp) 780
iGFX Core Current Max (1/8 Amp) 260
Long Duration Power Limit Override 760
Long Duration Maintained 28
Short Duration Power Limit Override 950
1 Core Ratio Limit 39
2 Core Ratio Limit 38
3 Core Ratio Limit 37
4 Core Ratio Limit 36
+/- : Change Opt.
Enter/Dbl Click : Select
lk
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit
F4: Save & Exit
mn
+/- : Change Opt.
Enter/Dbl Click : Select
lk
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit
F4: Save & Exit
mn
