Chapter 2
19
H77H2-M4 USER MANUAL

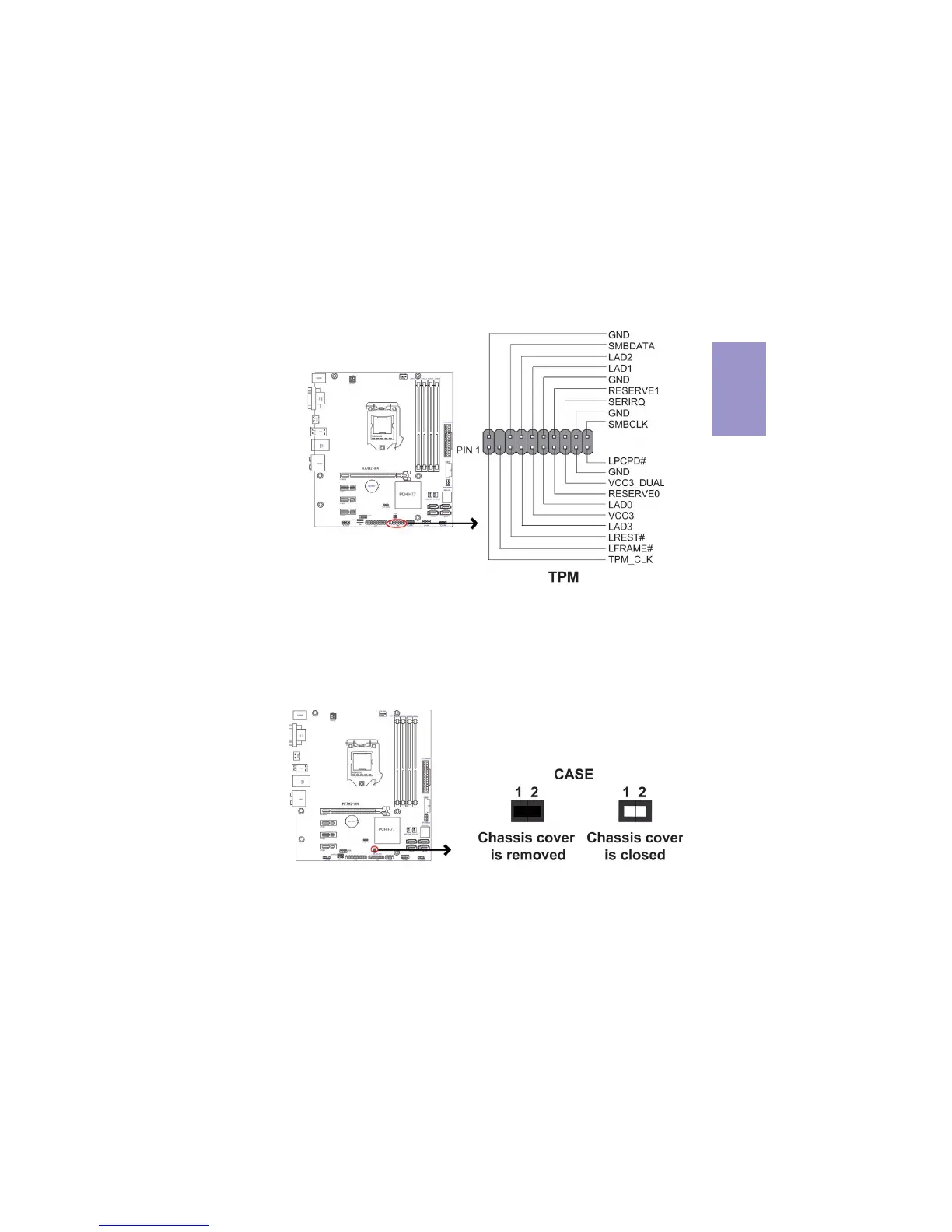

6. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
T
rusted platform module (TPM) is a published specific
ation detailing a micro c
on-
troller that can store secured information, and implementations of that specifica-
tion.
5. TPM: T
rust
ed Platf
orm Module header
22
24
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Pakage Contents
5
Specifications
6
Motherboard Components
8
I/O Ports
10
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Installing the Motherboard in a Chassis
11
Checking Jumper Settings
12
Installing Hardware
13
Installing the Processor
13
Installing the CPU Cooler
15
Installing Memory Modules
16
Installing Add-On Cards
18
Connecting Optional Devices
20
Installing a SATA Hard Drive
27
Connecting Case Components
28
Front Panel Header
30
Chapter 3 Using BIOS
33
About the Setup Utility
33
The Standard Configuration
33
Entering the Setup Utility
33
Resetting the Default CMOS Values
34
Using BIOS
34
BIOS Navigation Keys
35
Main Menu
36
Advanced Menu
37
Lan Configuration
38
Pc Health Status
39
Power Management Setup
41
Acpi Configuration
42
Cpu Configuration
43
Sata Configuration
45
Usb Configuration
46
Super Io Configuration
47
Trusted Computing
49
Intel Rapid Start Technology
49
Intel Smart Connect Technology
50
Chipset Menu
51
MB Intelligent BIOS III) Menu
54
Boot Menu
59
Security Menu
61
Save & Exit Menu
64
Updating the BIOS
65
Chapter 4 Using the Motherboard Software
67
Auto-Installing under Windows XP/7/8
67
Running Setup
67
Manual Installation
69
ECS Utility Software (Intelligent EZ Utility)
69
Chapter 5 Intel Matrix Storage Manager RAID Configuration
71
Before Creating a RAID Set
71
Entering Intel Matrix Storage Manager RAID BIOS Utility
72
Creating a RAID Set
73
Deleting a RAID Set
75
Reseting Disks to Non-RAID
76
Exiting Setup
76
Chapter 6 Trouble Shooting
77
Start up Problems During Assembly
77
Start up Problems after Prolong Use
78
Maintenance and Care Tips
78
Basic Troubleshooting Flowchart
79
