Chapter 2
20
H77H2-M4 USER MANUAL

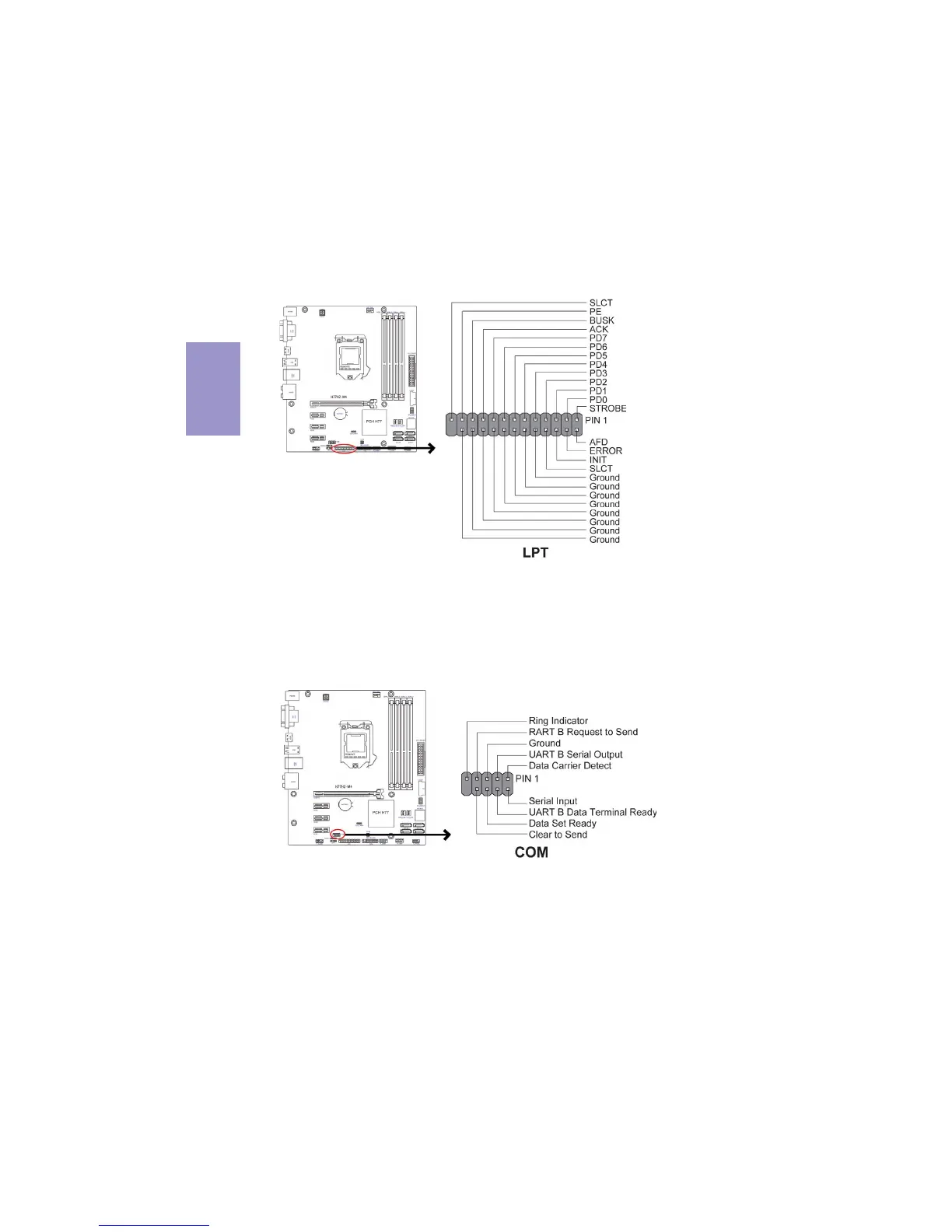

7. LPT
: Onboard par
allel port Header
This is a header that can be used to c
onnect to the printer
, scanner or other devices.
8. COM: Onboard serial port header
Connect a serial port extension bracket to this header to add a serial port to your
system.
