ECS H81H3-M3 User Manual

Chapter 2
20
H81H3-M3 USER MANUAL
If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel
Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect ” .
* For reference only

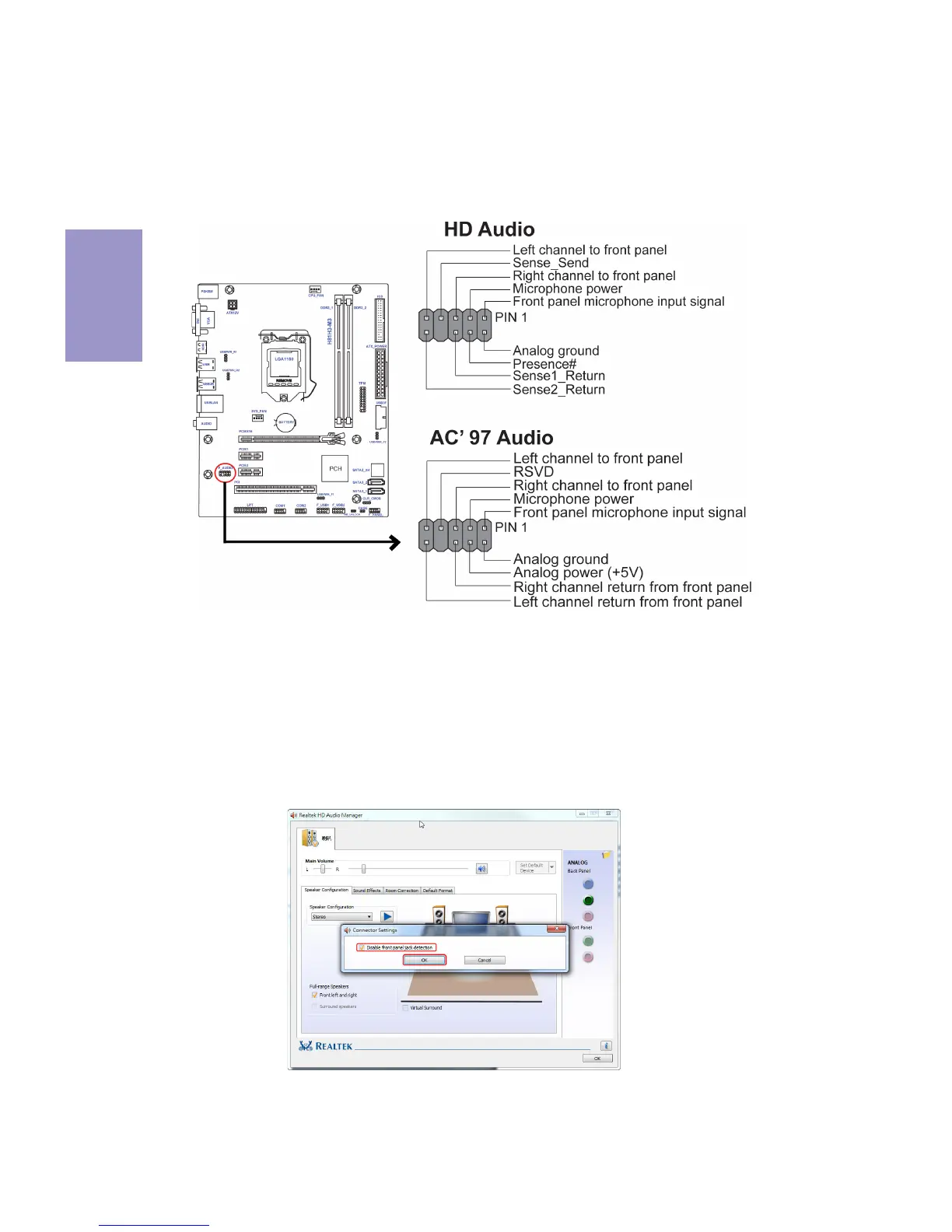

AC’ 97 Audio Configuration: To enable the front panel audio connector to sup-
port AC97 Audio mode.
The front panel audio header allows the user to install auxiliary front-oriented mi-
crophone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,
please set as below picture.
9. F_AUDIO: Front Panel Audio Header

ECS H81H3-M3 Specifications

General

Brand	ECS
Model	H81H3-M3
Category	Motherboard
Language	English
