2-4-6. Installing an FDD Drive
This section describes how to install an FDD Drive.
FDD: Floppy Disk Connector
Connect the single end of the floppy connector to the onboard floppy connector
firstly, and then connect the remaining plugs on the other end to the floppy drive
correspondingly.

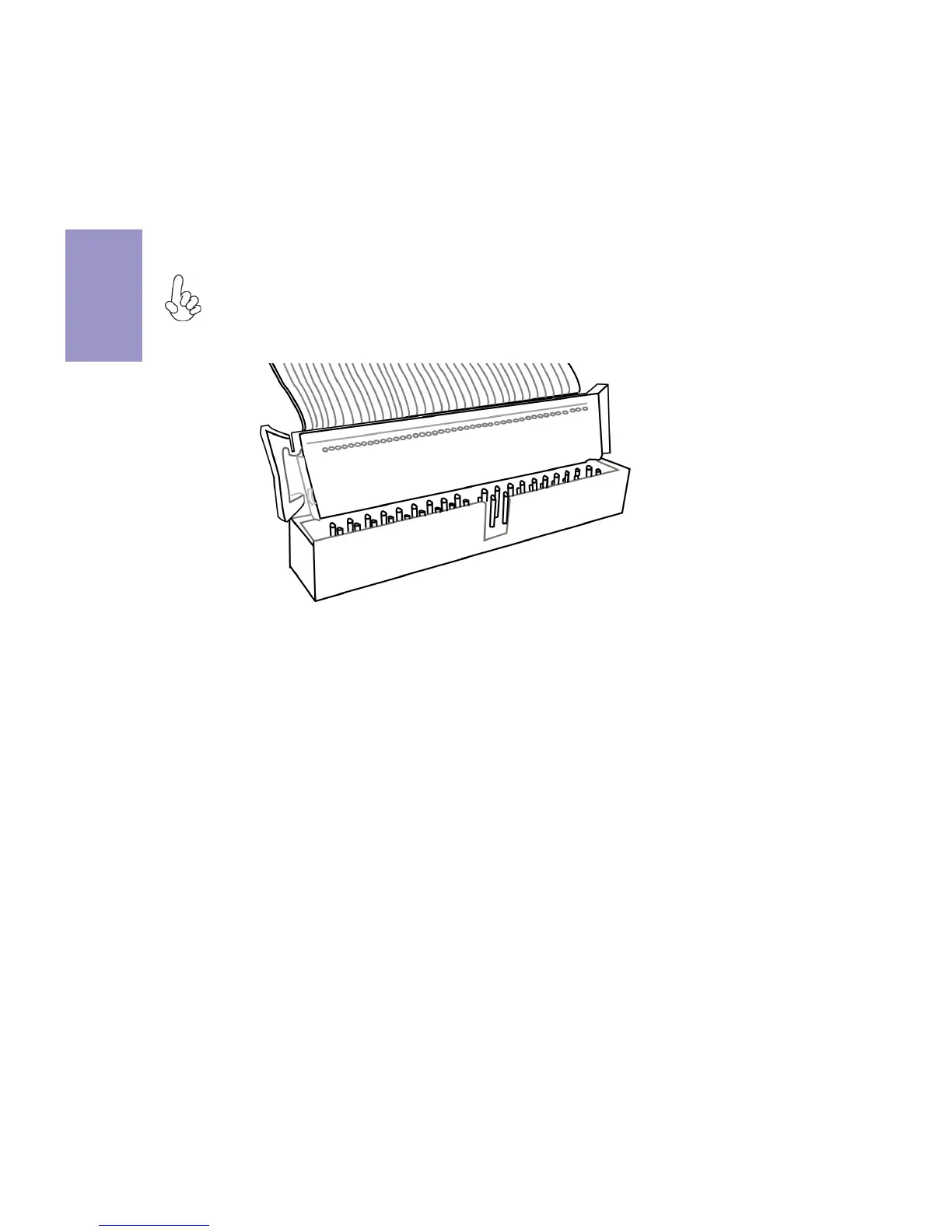

You must orient the cable connector so that the pin 1 (color) edge of the cable
corresponds to the pin 1 of the I/O port connector.
* For reference only
To Next Page
