Chapter 2
20
H87H3-M4 USER MANUAL
Unlike F_USB2, F_USB1 supports EZ Charger technology, provides 3 times current
than general USB port in off mode for USB devices. It is useful and excellent,
especially for the iPhone, iPad and iPod touch devices that need a large amount of
current for faster recharging within less time.
The motherboard has two USB 2.0 headers supporting four USB 2.0 ports.
Additionally, some computer cases have USB ports at the front of the case. If you
have this kind of case, use auxiliary USB connector to connect the front-mounted
ports to the motherboard.

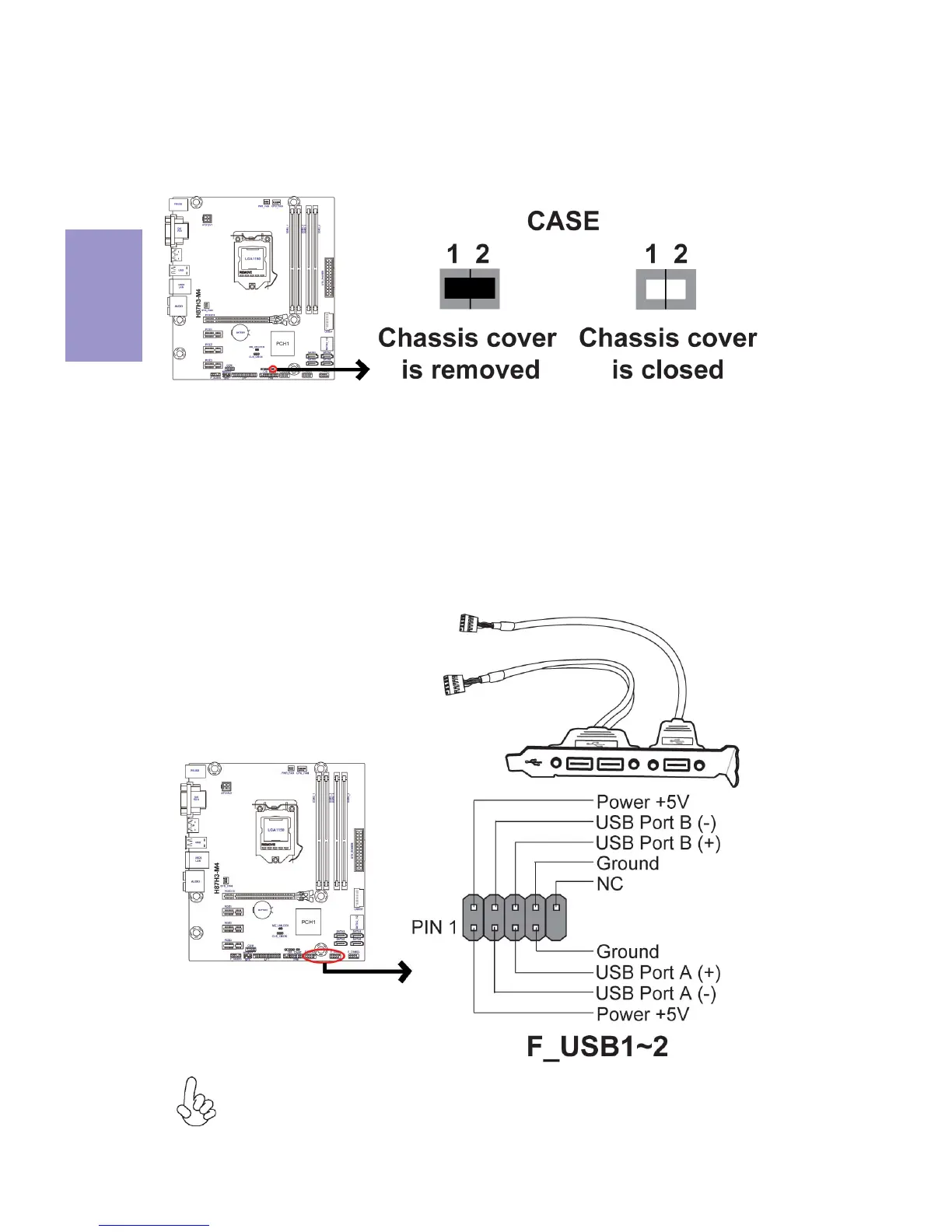

5. F_USB1~2: Front Panel USB 2.0 Headers
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
4. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
