Chapter 2
22
H87H3-M4 USER
MANUAL

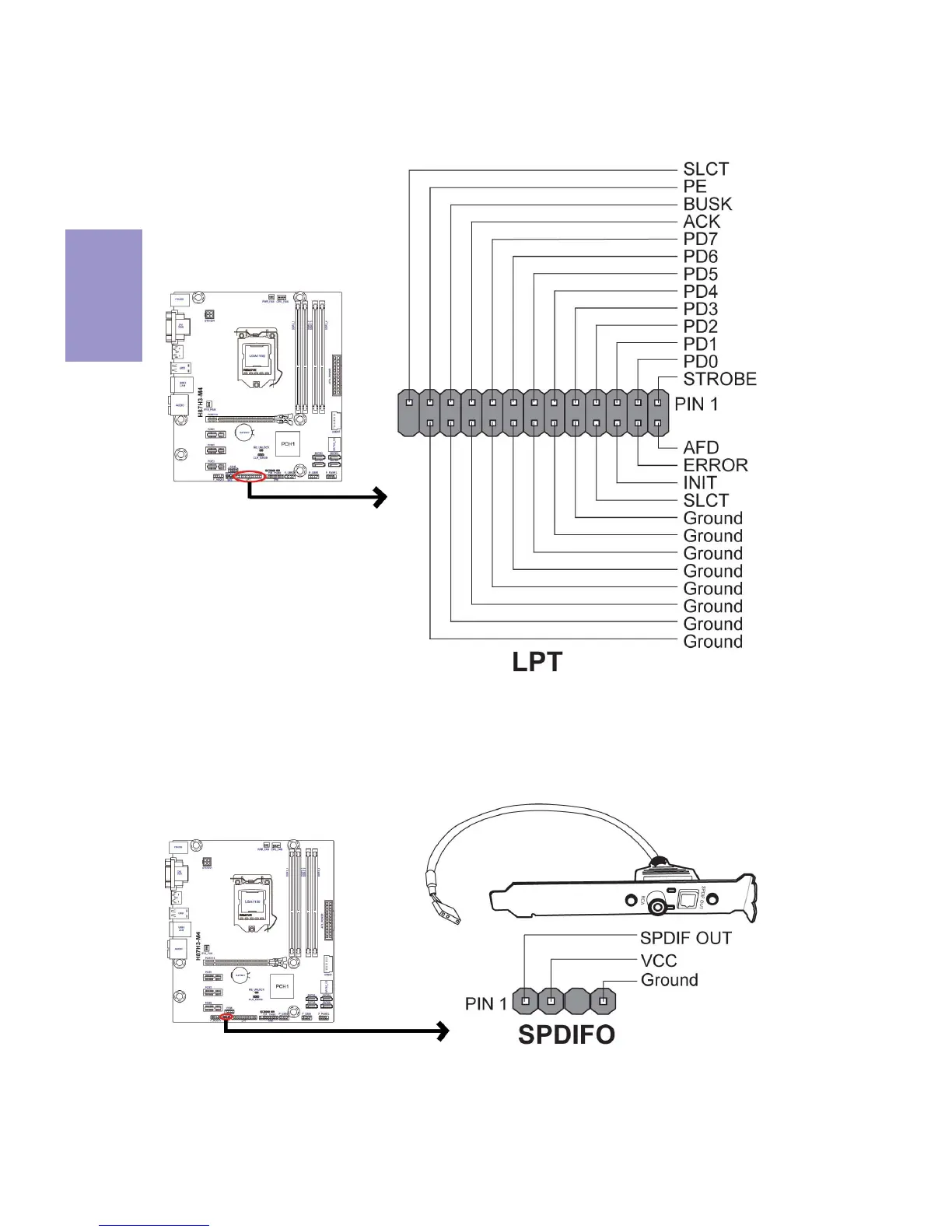

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)
output to digital multimedia device thr
ough optical fiber or coaxial connector
.
9. SPDIFO: SPDIF Out Header
This is a header that can be used t
o connect to the prin
ter
, scanner or other devices.
8. LPT
: Onboard P
ar
allel Port Header
25
27
