ECS NFORCE6M-A - Bootable RAID Array Setup

58
NVIDIA RAID Configuration
Setting Up a Bootable RAID Array
This section explains how to configure a bootable NVIDIA RAID array.
Setting Up the BIOS
Use the arrow keys to select Integrated Peripherals (see Figure 2.5), then
press Enter.
The Integrated Peripherals screen (or a screen similar to it) appears.

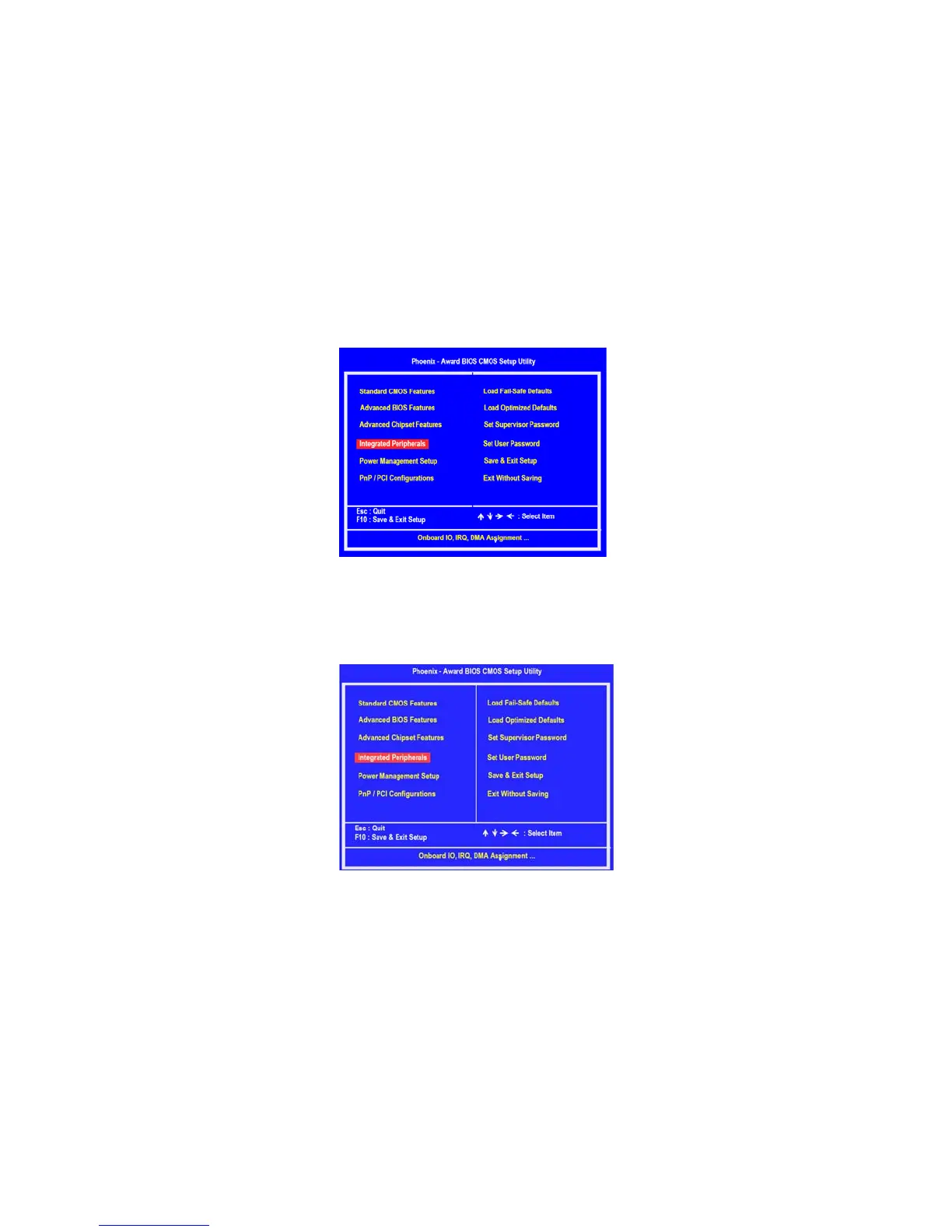

Figure 2.6 Integrated Peripherals Screen
Use the arrow keys to select the RAID Config (see Figure 2.6).
Press Enter.
Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Figure 2.5 BIOS CMOS Setup Utility Main Screen
