68
Intel
®
Matrix Storage Manager RAID Configurations
2
.

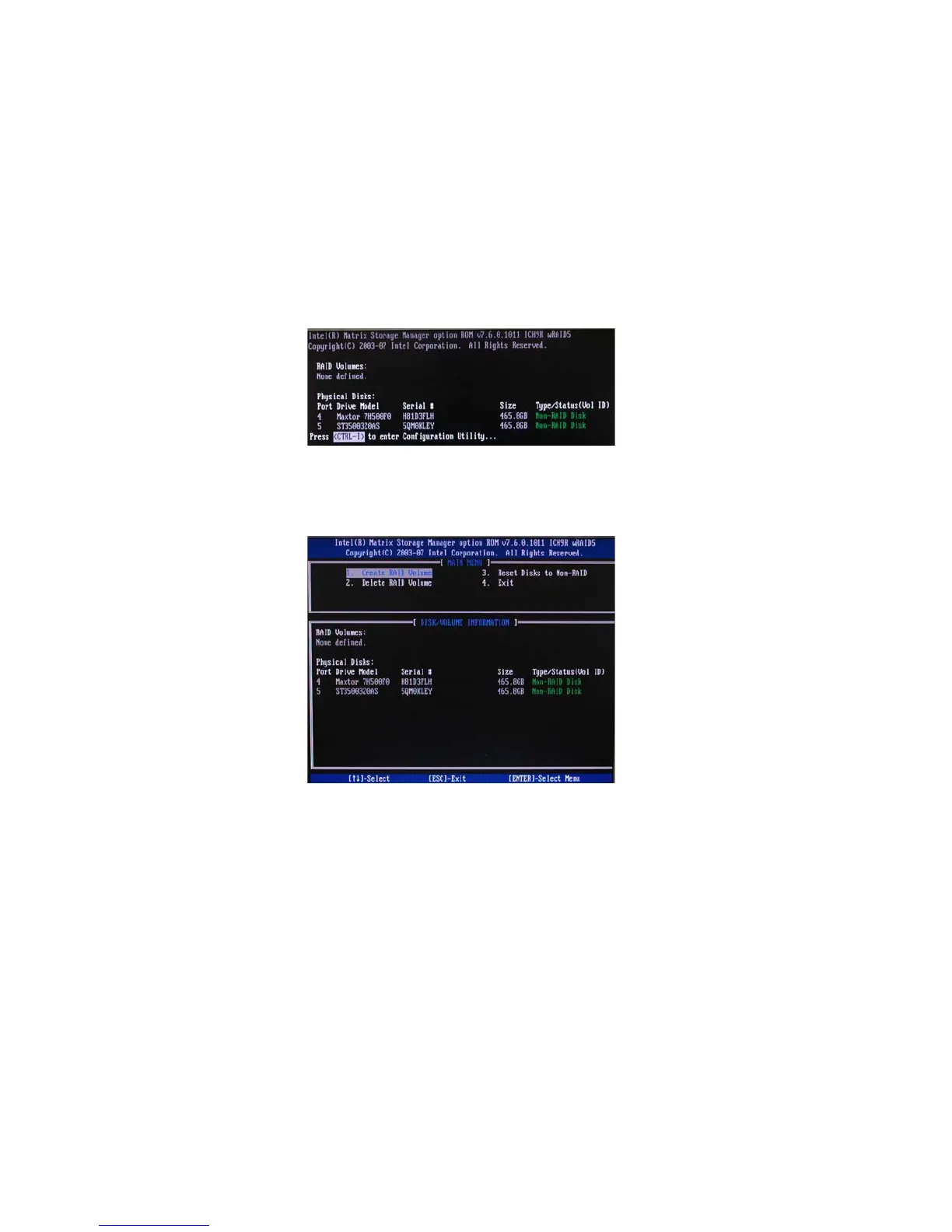

The main Intel
®
Matrix Storage Manager RAID BIOS menu appears.
Entering Intel
®
Matrix Storage Manager RAID BIOS util-
ity
1
.
During POST
, press <Ctrl-I> to enter the Intel
®
Matrix Storage Manager
RAID BIOS menu.
3
.
Use the arrow keys to move the color bar and navigate through the items.
71
73
