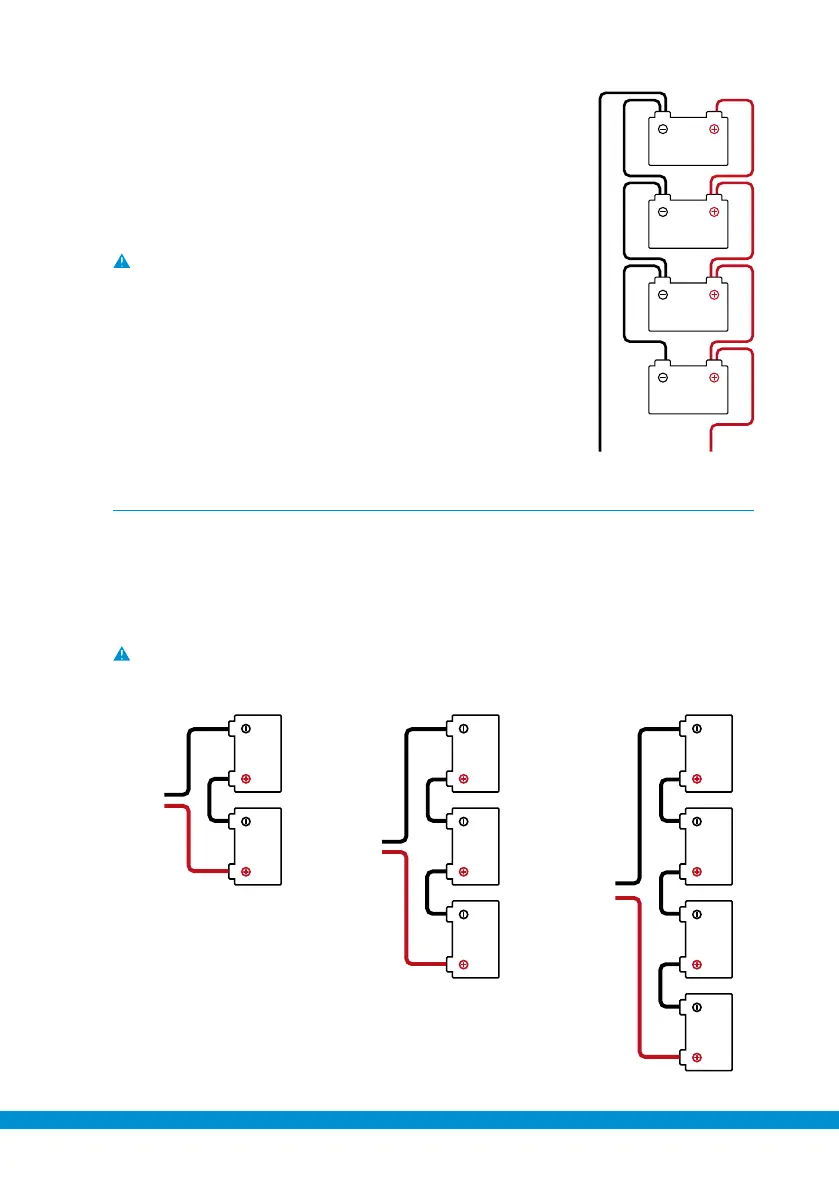

Series connection (24 V / 36 V / 48 V)
To increase the total voltage while maintaining the same capacity, you can connect
a maximum of four batteries in series.
Ensure that only batteries of the same type, age and capacity are connected in
parallel. Fully charge all batteries individually beforehand!
Parallel connection (12 V)
When several ECTIVE batteries are connected in parallel,
the total capacity is increased while the voltage remains
the same. This also leads to correspondingly higher char-
ging and discharging currents.
Ensure that only batteries of the same type, age and ca-
pacity are connected in parallel. Fully charge all batteries
individually beforehand.
24 V
1
2
1
2
3
1
2
3
4
+
-
+
-
+
-
36 V
48 V
Battery 1
Battery 2
Battery 3
Battery 4
