ECX BARRAGE DOOMSDAY - Table of Contents

3
EN
1:12-SCALE 4WD BRUSHED RTR
Transmitter
Frequency 2.4GHz
Battery AA x 4
Servo
Power Supply 4.8V~6V
Operating Speed .18 sec/60 degrees @ 4.8V
(.15 sec/60 degrees @ 6.0V)
Output Torque 44 oz-in @ 4.8V (54 oz-in @ 6.0V)
Size 40 x 20.3 x 38mm
Electronic Speed Control (ESC)
Input Voltage 6.0–8.4V
Electric Capacity 60A ESC
PWM Frequency 1kHz
BEC Voltage 5V/2A
Size 46.5 x 34 x 28.5mm
Weight 65 g
Quick Start....................................................................................................4
Vehicle Preparations ....................................................................................4
Charging the Vehicle Battery ...................................................................4
Charging Warnings ..................................................................................4
Installing the Battery................................................................................5
Transmitter Controls ................................................................................. 5
Installing Transmitter Batteries ...............................................................5
Binding .....................................................................................................6
Getting Started.............................................................................................6
Operation......................................................................................................7
When You Are Finished................................................................................7
Motor Care ...................................................................................................7
Maintenance ................................................................................................8
Setting the Gear Mesh.............................................................................8
Electronic Speed Control (ESC) ................................................................8
Troubleshooting Guide .................................................................................9
Limited Warranty .......................................................................................10
Warranty and Service Contact Information ...............................................11
FCC Information..........................................................................................11
IC Information.............................................................................................11
Replacement Parts .............................................................................. 40–41
Optional Parts.............................................................................................41
Parts Diagram...................................................................................... 42–46
TABLE OF CONTENTS

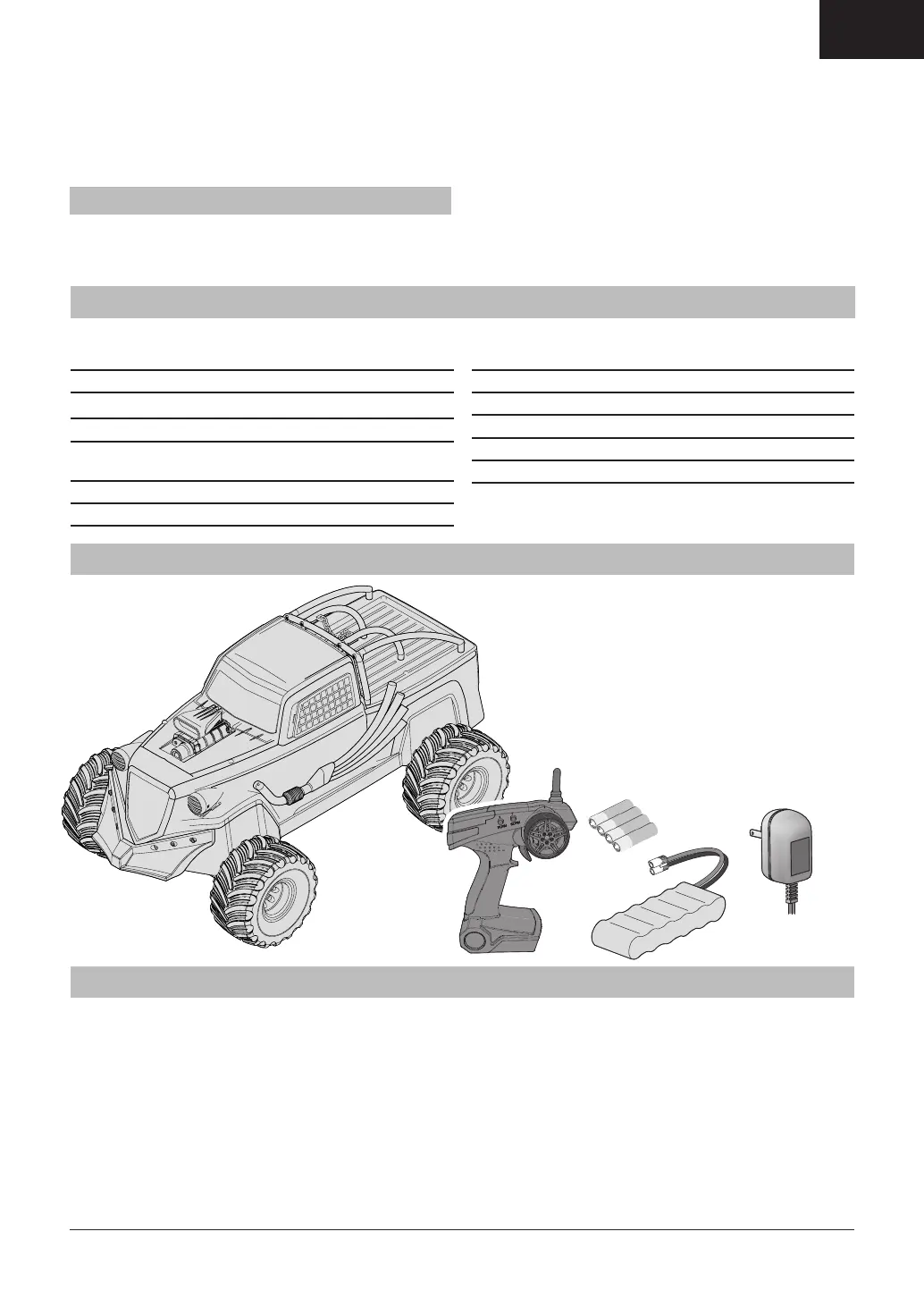

COMPONENTS
SPECIFICATIONS
Wet Conditions Maintenance
• Remove the battery pack(s) and dry the contacts. If you have an air
compressor or a can of compressed air, blow out any water that may be
inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt
off with a garden hose. Avoid rinsing the bearings and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Use an air compressor or a can of compressed air to dry the vehicle and
help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a
water-displacing light oil or lubricant. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to
drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the
following:
• Front and rear axle hub assembly bearings.
• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil the bushings
with lightweight motor oil.
• ECX
®
Barrage Doomsday
™
• ECX
®
2.4GHz 2-CH V3 Transmitter
• AA (4) Batteries
• 100mAh NiMH Wall Charger with EC3
™
Connector
• Dynamite
®
Speedpack
®
900mAh NiMH battery with EC3
™
Connector
• Dynamite
®
Tazer
™
390 Brushed Motor
• Dynamite
®
60A WP FWD/REV Brushed ESC
• ECX
®
2.4GHz 2-CH V3 Receiver
• Spektrum
™
Digital Servo
