TILLERHEAD
3. TILLERHEAD
1.
IMPORTANT-SAFETY
Verify that spring safety pin is in place. The pin
should be well rested in the holes situated on each
side of the pump housing. If the safety pin is not
rested properly in one of the holes, put pressure on
the spring using a “C” clamp pushing down on the
pump stem. Once pressure is relieved on the pin,
reinsert properly and remove clamp slowly.
2.
Insert handle pin into corresponding holes and ,
drive in one cotter pin on one side only(see arrow 2).
Note: Insert handle pin without the
handle and verify that the
center hole is facing you
(see arrow 1).
3.
IMPORTANT-CHAIN
Before this step, make sure to feed the chain on the
outside of the piston stem roller (see arrow 1).If left
in its proper position, it will not be possible to insert
the handle pin and chain, breakage may occur.
Align handle holes with pump housing holes and
push through handle pin(see arrow 2).

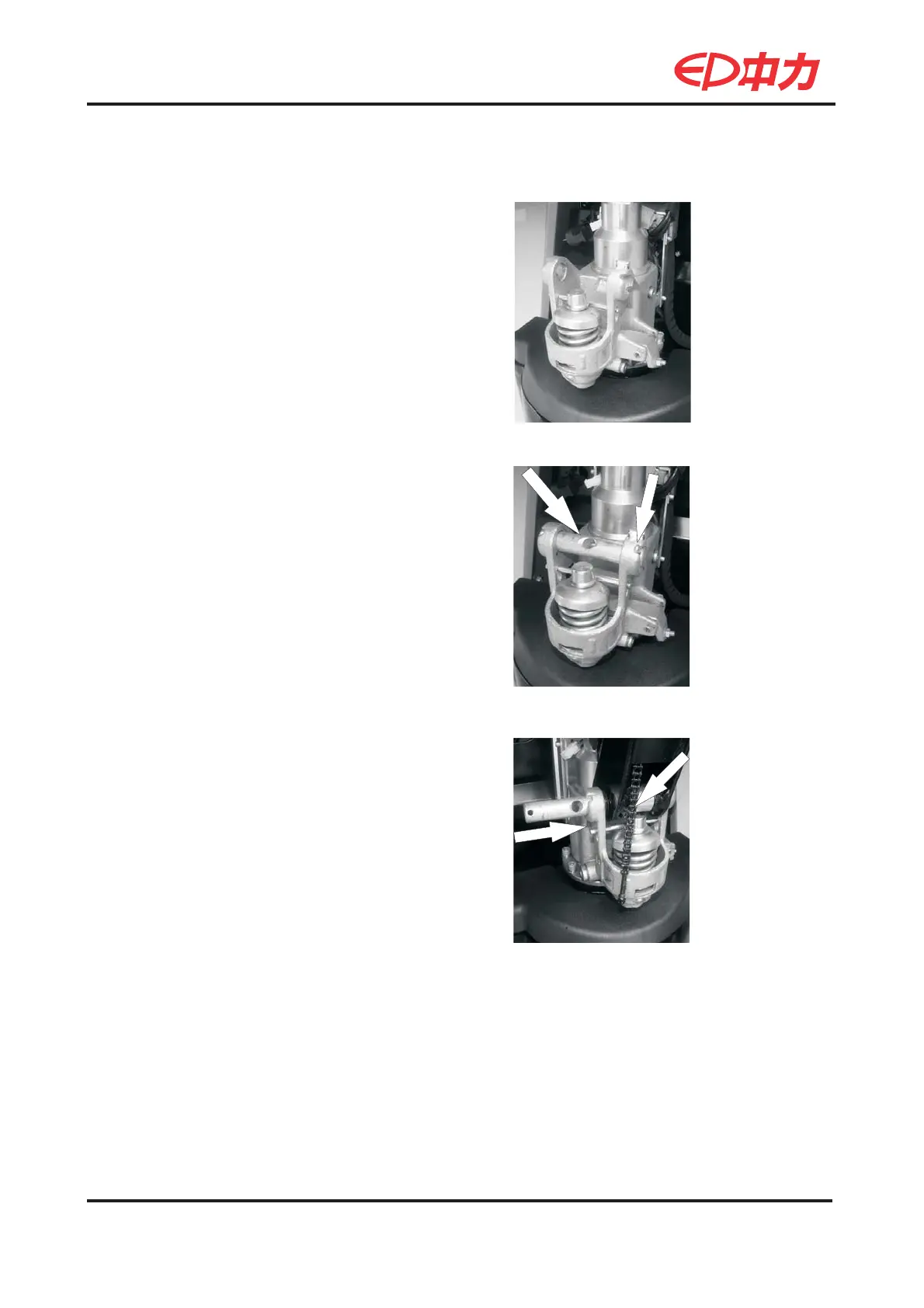

Figure 01301
Figure 01302
1
2
Figure 01303
1
2
3.1 Disassembly and Assembly
