TILLERHEAD
4.
Make sure that handle pin is completely through
the handle and resting on the other side.
5.
Feed the chain and nut first back inside the
handle through the handle pin's center hole.
IMPORTANT-TIP
Release the up/down lever to its lowest position
to make the process easier.
Once the chain is in the proper position, check
to see that it moves freely and that it is not
obstructed.
6.
Use both hands, push on the valve cam to raise
the hook inside the housing and feed the end of
the chain in the cam.
7.
Pull down on the handle to release the tension
on the safety pin. CAREFULLY remove the
safety pin.

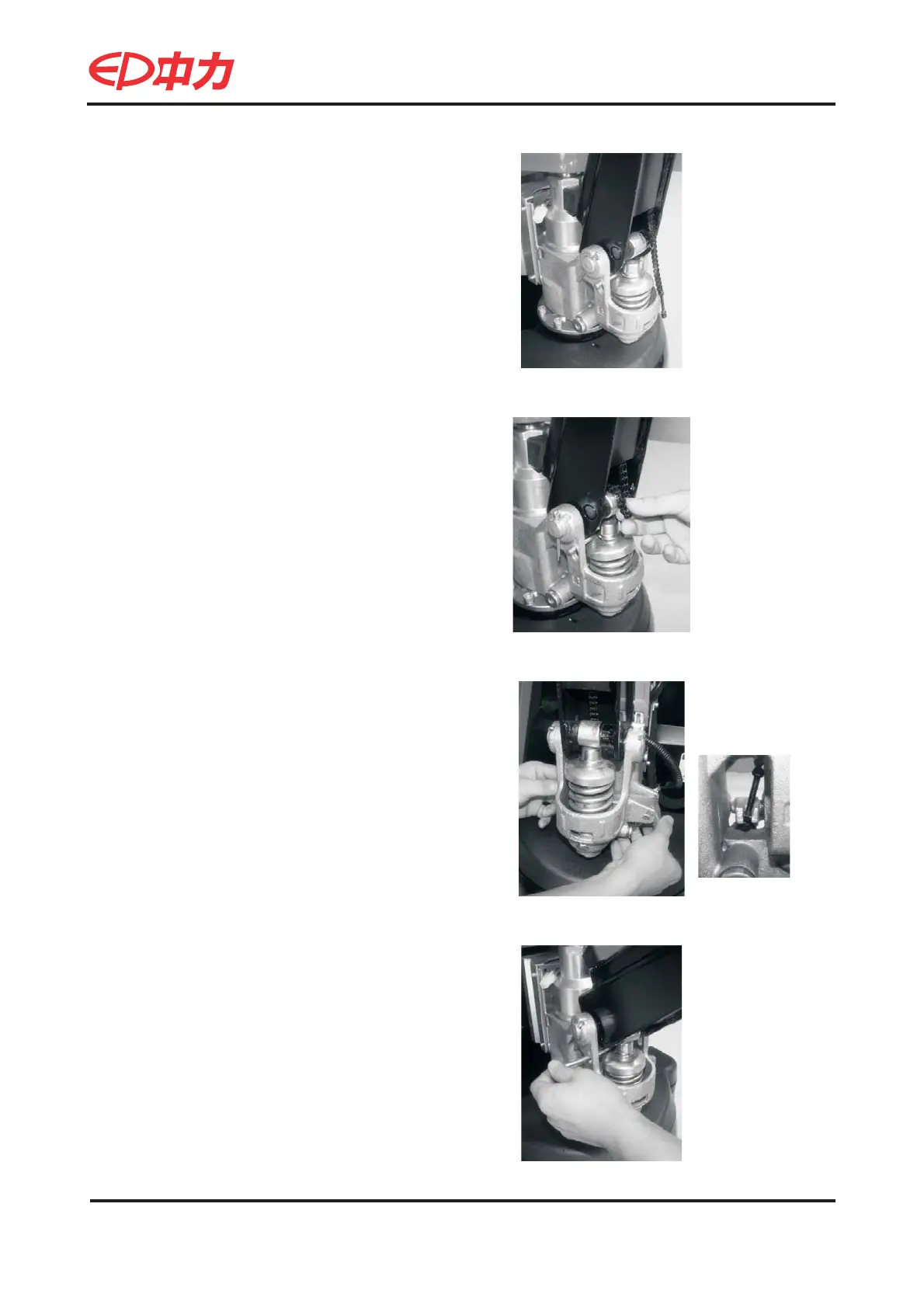

Figure 01304
Figure 01305
Figure 01306
Figure 01307
