TILLERHEAD
8.
Connect the both electrical plugs.
9.
IMPORTANT-FINAL CHECK
Test all the features of the semi-electric pallet
truck before this step. The handle should be
pumped with full strokes to prime and eliminate
air in the system.
The up/down lever should be checked at the
handle’s lowest position for this puts the most
tension on the chain. Once the
pallet truck is adjusted properly and is
performing well, drive in the second cotter pin.
10.
Tie the wire harness with a tie wrap(see arrow 1)
together .

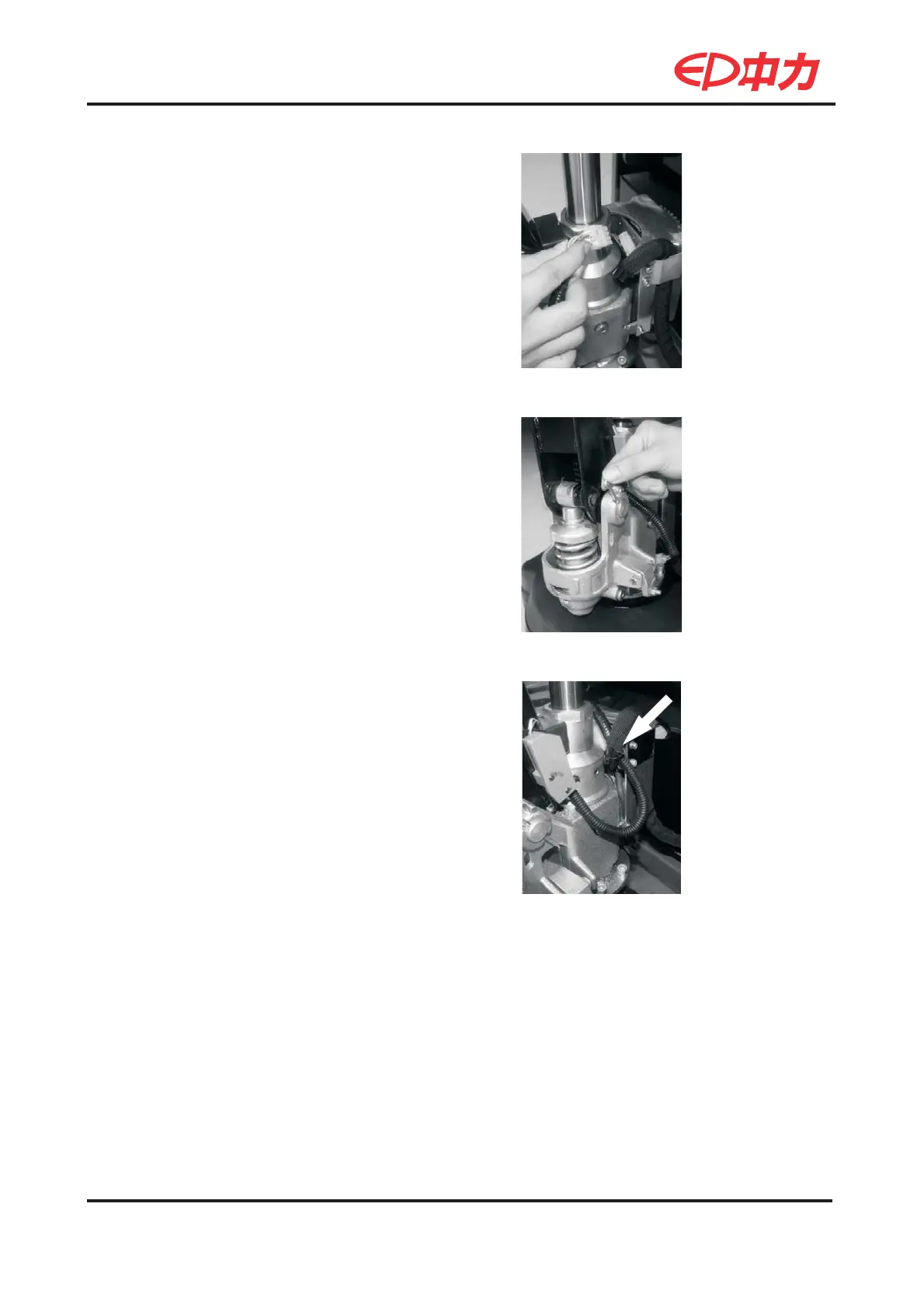

Figure 01308
Figure 01309
Figure 01310
1
To Next Page
